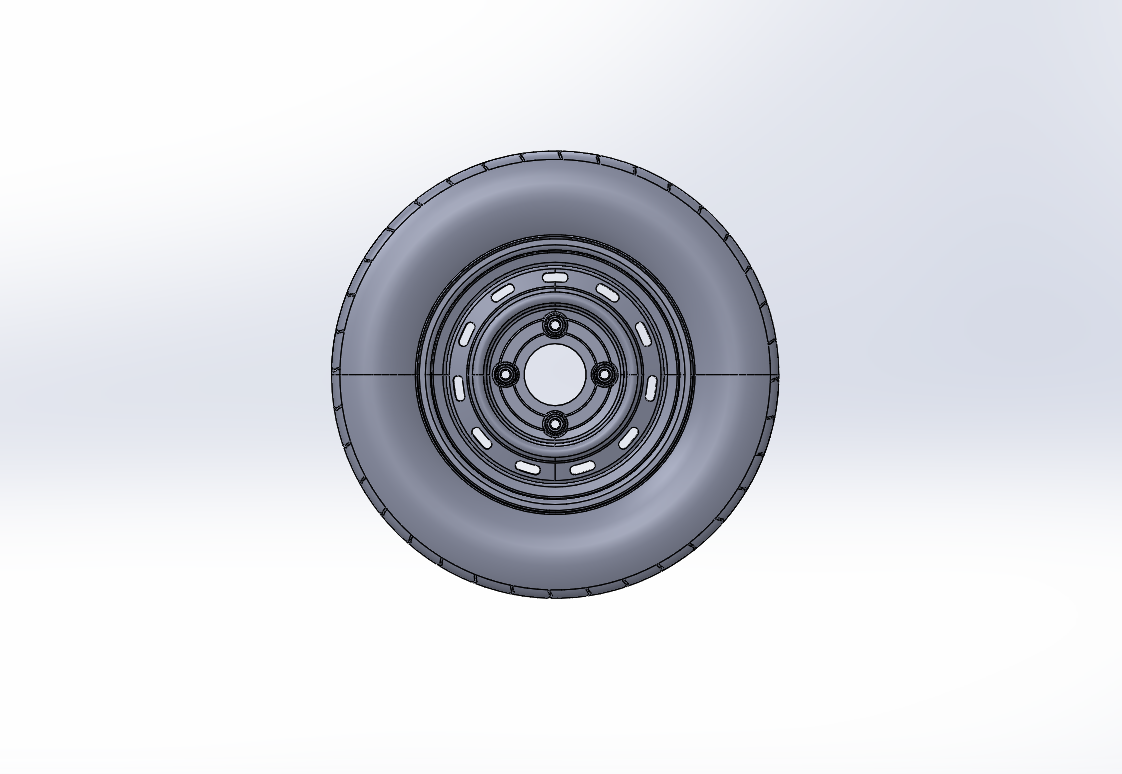

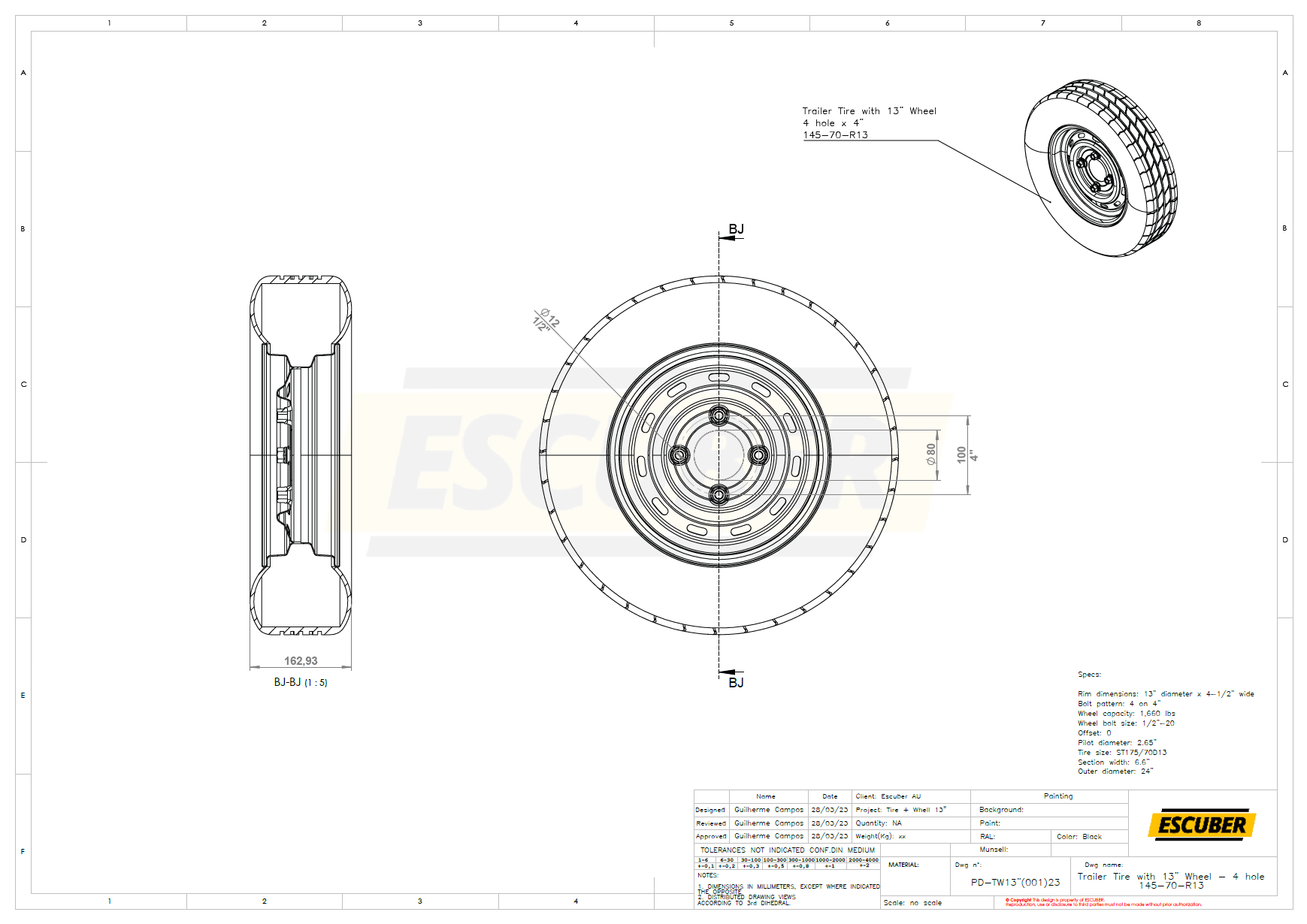

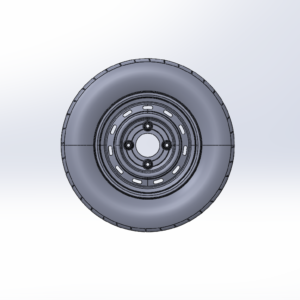

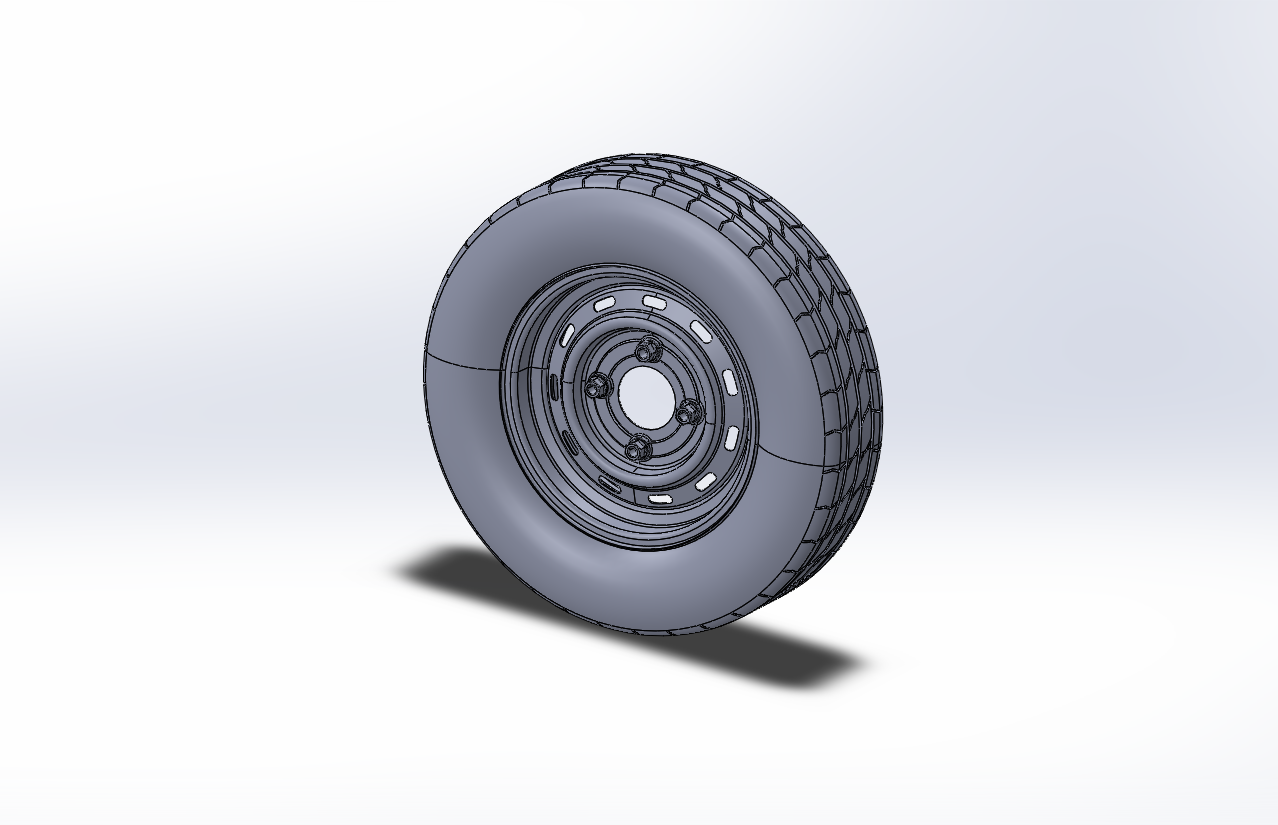

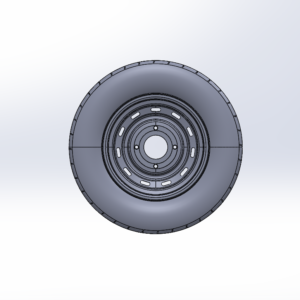

Trailer Tire with 13″ Wheel – 4 hole – 145-70-R13
$ 5,00
Specs:
Rim dimensions: 13″ diameter x 4-1/2″ wide
Bolt pattern: 4 on 4″
Wheel capacity: 1,660 lbs
Wheel bolt size: 1/2″-20
Offset: 0
Pilot diameter: 2.65″
Tire size: ST175/70D13
Section width: 6.6″
Outer diameter: 24″
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Specs:
Rim dimensions: 13″ diameter x 4-1/2″ wide
Bolt pattern: 4 on 4″
Wheel capacity: 1,660 lbs
Wheel bolt size: 1/2″-20
Offset: 0
Pilot diameter: 2.65″
Tire size: ST175/70D13
Section width: 6.6″
Outer diameter: 24″
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
