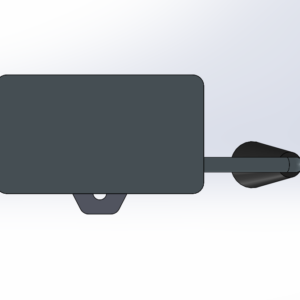

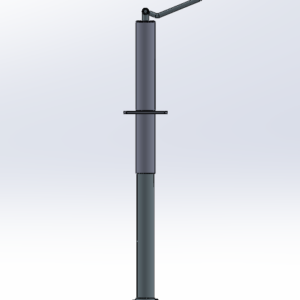

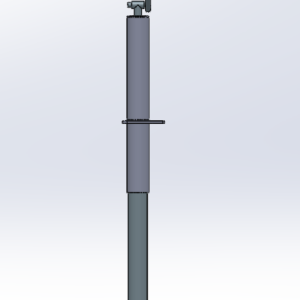

Trailer Jack – A-Frame – Topwind – 27-1/2″ Lift – 2,000 lbs
$ 5,00

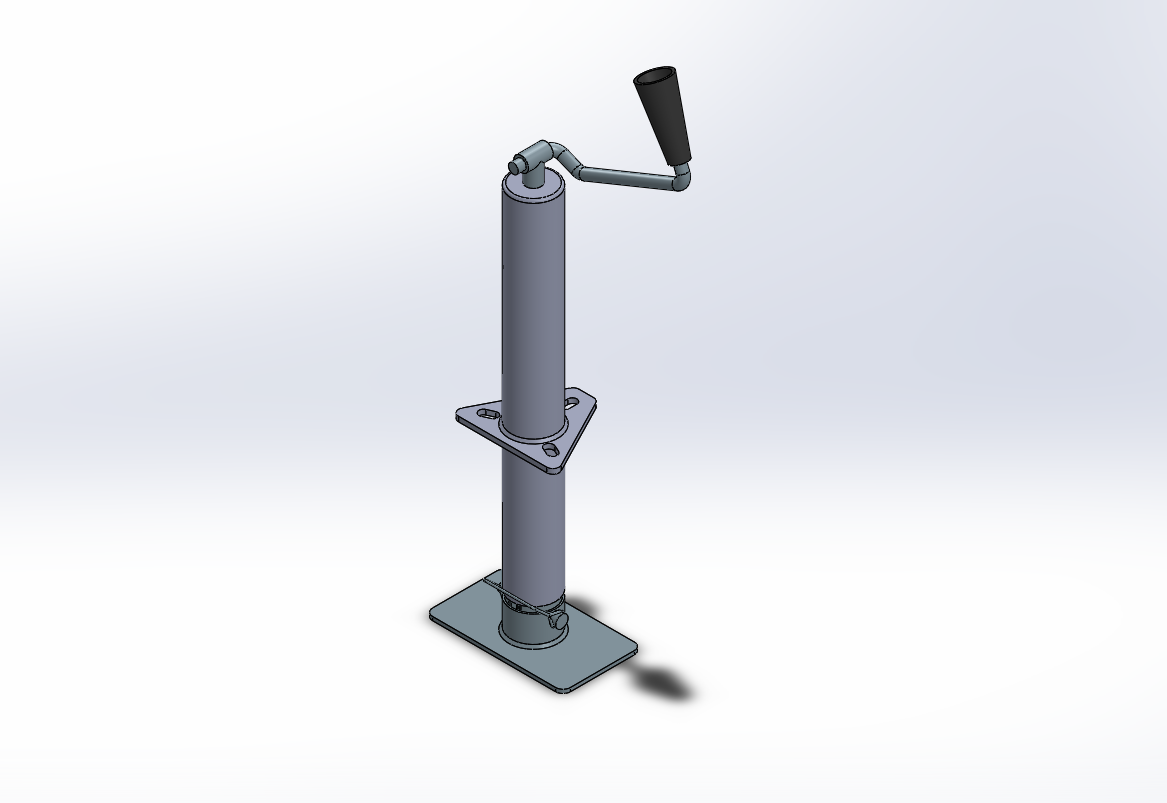

Just pull the easy-to-access pin on this jack to drop the entire jack tube down for quick, easy adjustment. No drop leg needed. Seven height settings
offer up to 12″ of drop. Topwind handle allows for an additional 15-1/2″ of screw travel.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Just pull the easy-to-access pin on this jack to drop the entire jack tube down for quick, easy adjustment. No drop leg needed. Seven height settings
offer up to 12″ of drop. Topwind handle allows for an additional 15-1/2″ of screw travel.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Specs:
– Bracket height:

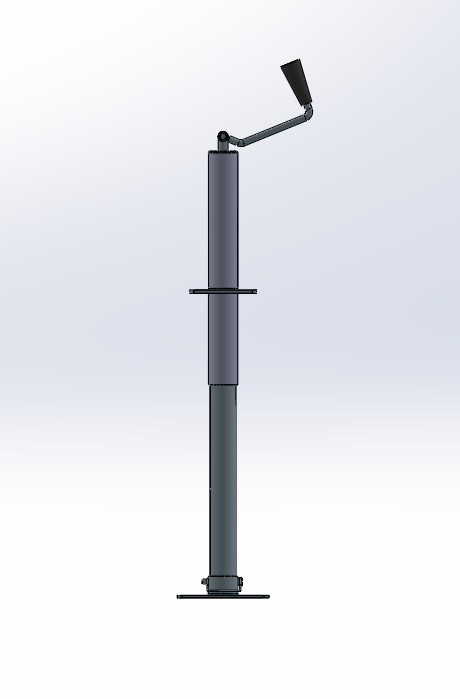

o 1-3/4″ with the jack fully retracted and the collar at the lowest setting
o 29-1/4″ with the jack fully extended and the collar at the highest setting
– Total lift: 27-1/2″
o Travel by cranking the handle: 15-1/2″
o Drop tube: 12″ – adjusts in increments of 2″

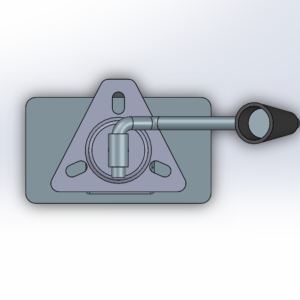

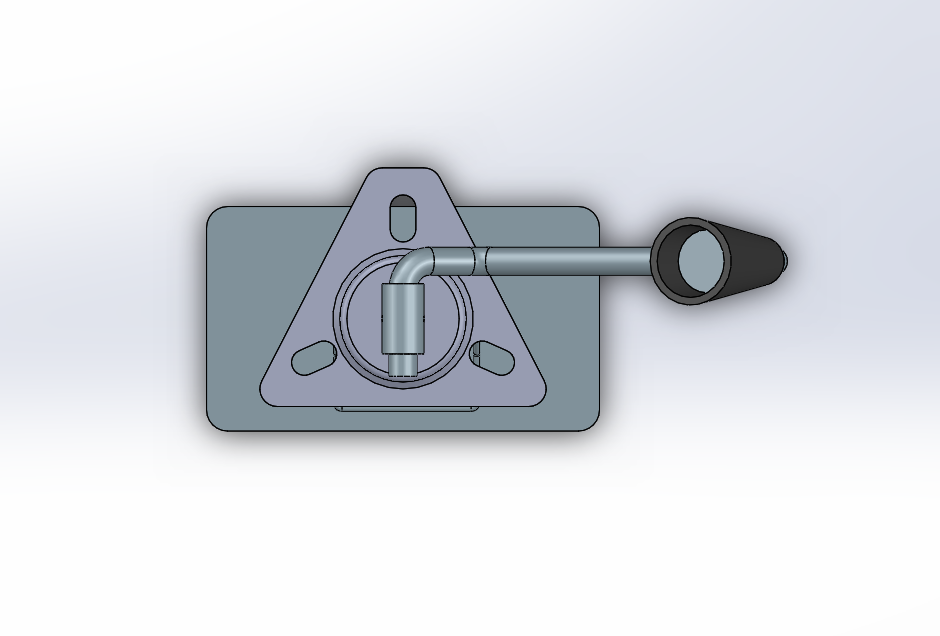

– Mounting bracket hole spacing (center on center): 3″ x 3-1/4″
– Inner tubing diameter: 2″
– Outer tubing diameter: 2-1/4″
– Clearance from bottom of bracket to top of handle mount: 7-1/4″ x 19-1/4″
– Lift capacity: 2,000 lbs
– Support capacity: 3,000 lbs
The Trailer Jack has a wide range of adjustability and it is easy to use, making it a dependable choice for your A-frame trailer.
Its adjustable design allows for maximum clearance, drastically reducing the potential for damaging hang-ups.
The jack also features an outer tube that extends to provide extra lift. This removes the need for common space fillers while providing a sturdy base of support.
With this jack, the hassle of dealing with drop legs, bulky blocks, or heavy bricks is a thing of the past.
Be the first to review “Trailer Jack – A-Frame – Topwind – 27-1/2″ Lift – 2,000 lbs”
A single PDF document for your download and viewing convenience:
- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
