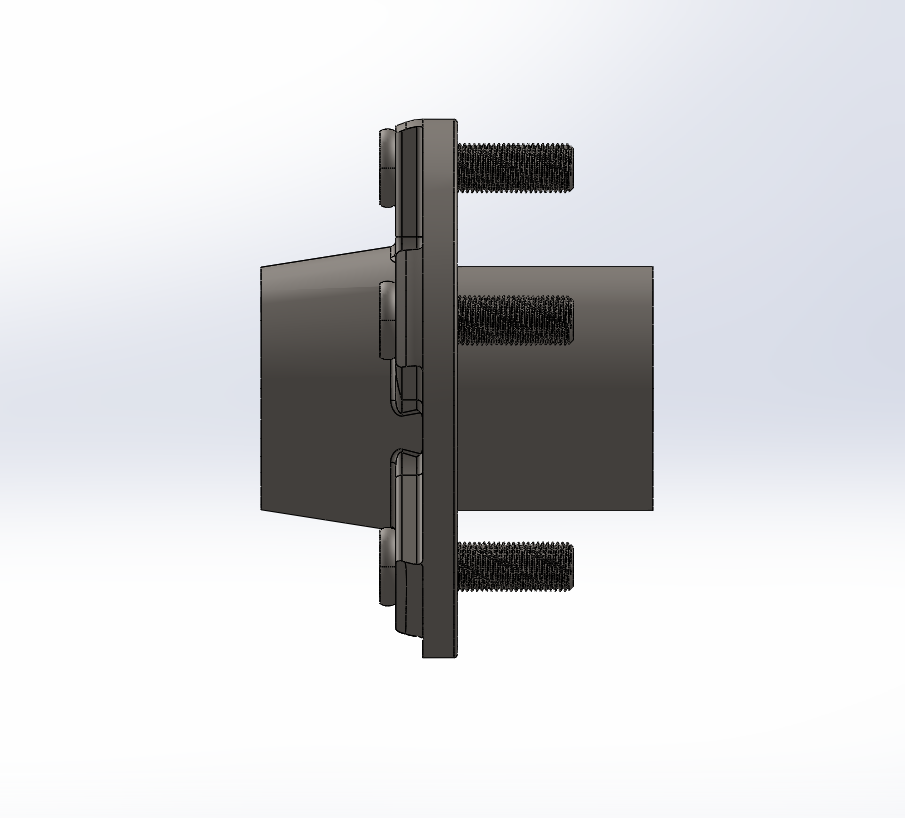

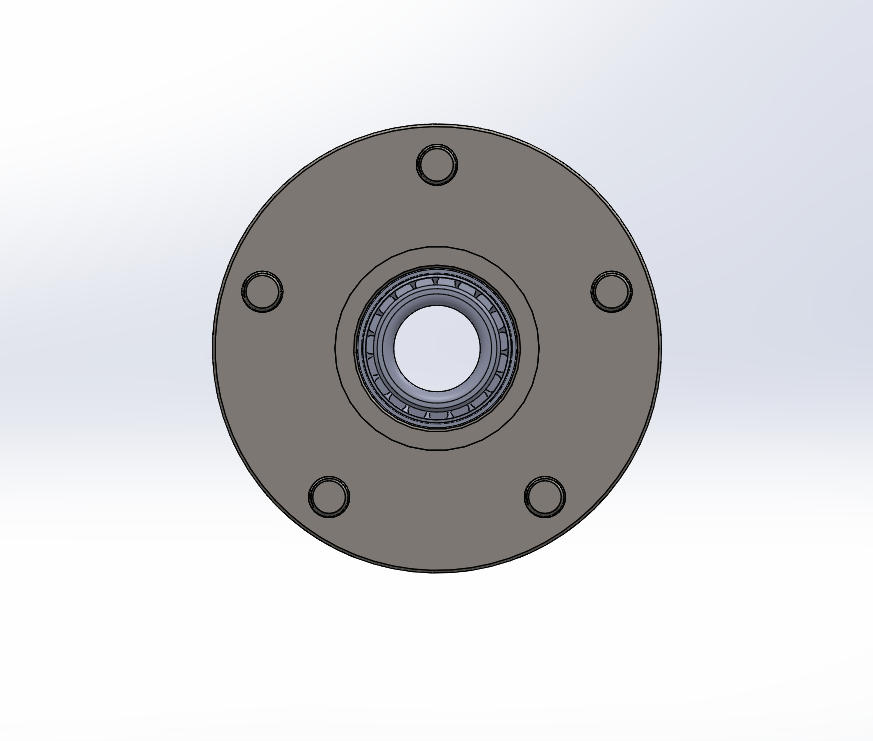

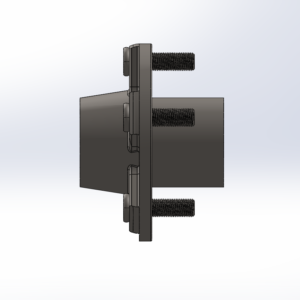

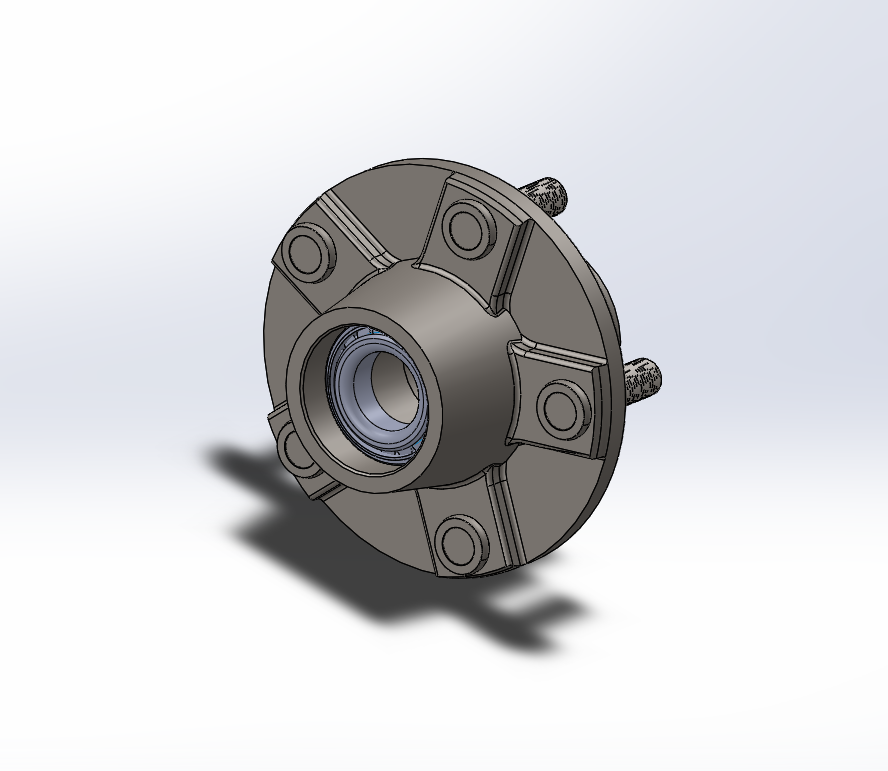

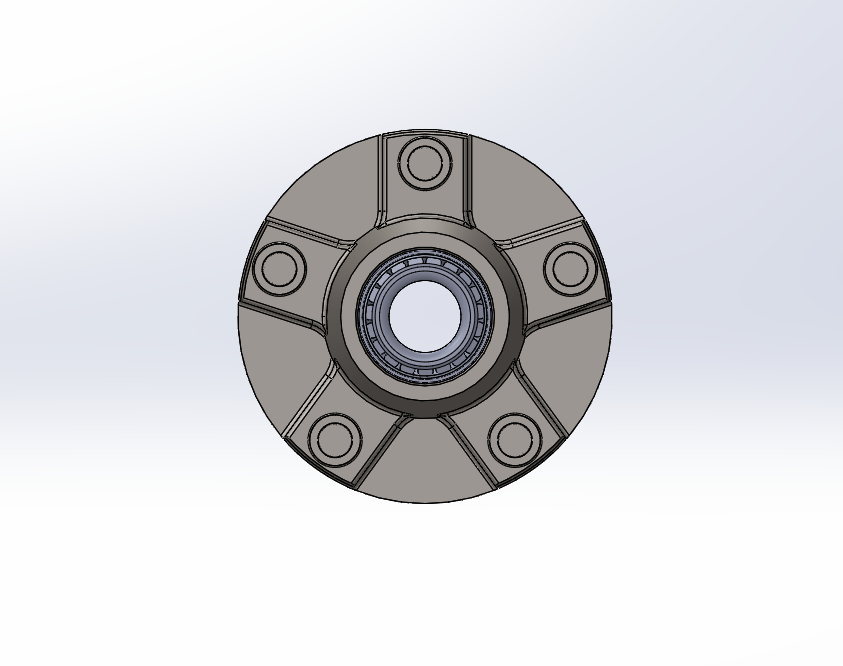

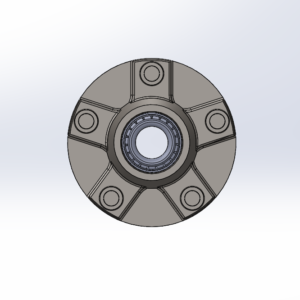

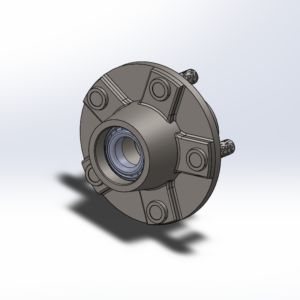

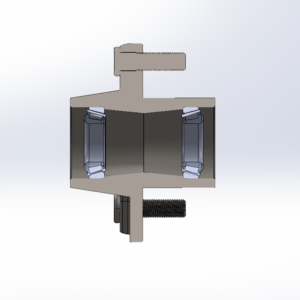

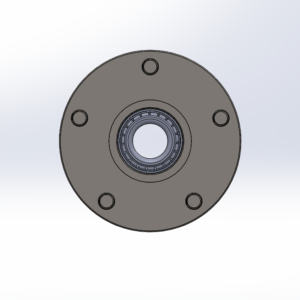

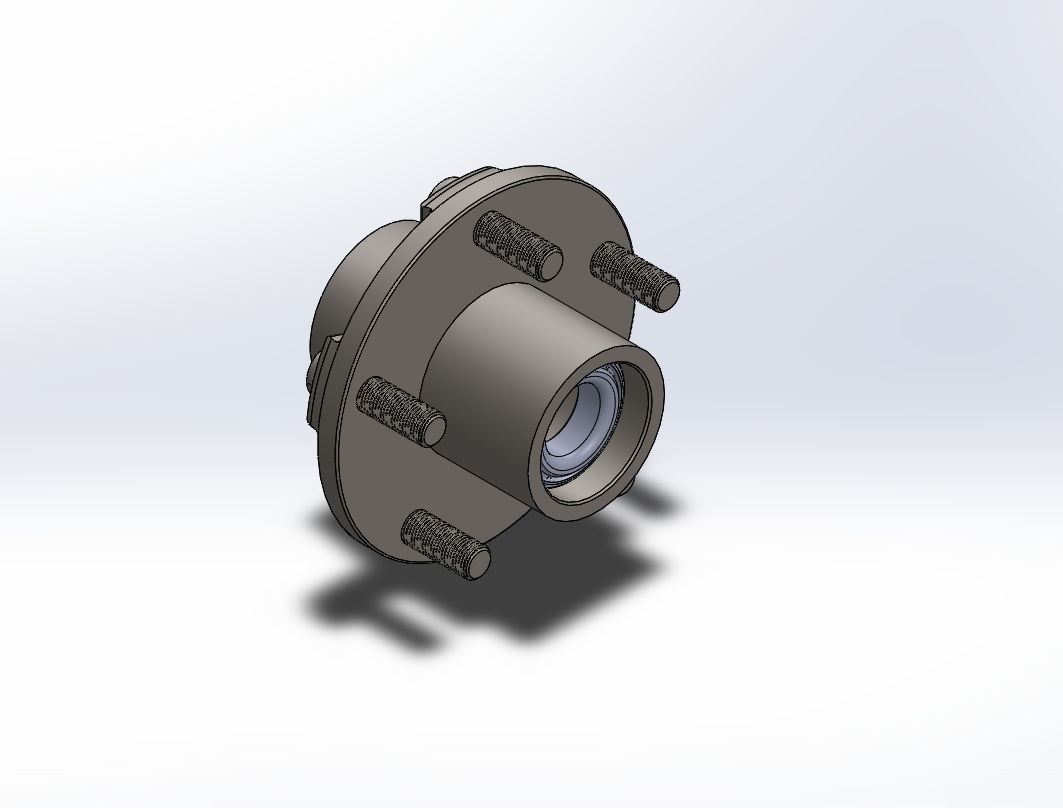

Trailer Idler Hub Assembly for 2K Lbs Axles 13″ to 15″ Wheels – 5 on 4-1/2″
$ 5,00
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, Weight capacity: 1,000 lbs grease seal, grease cap, and lug nuts included. Fits 13″ to 15″ wheels.

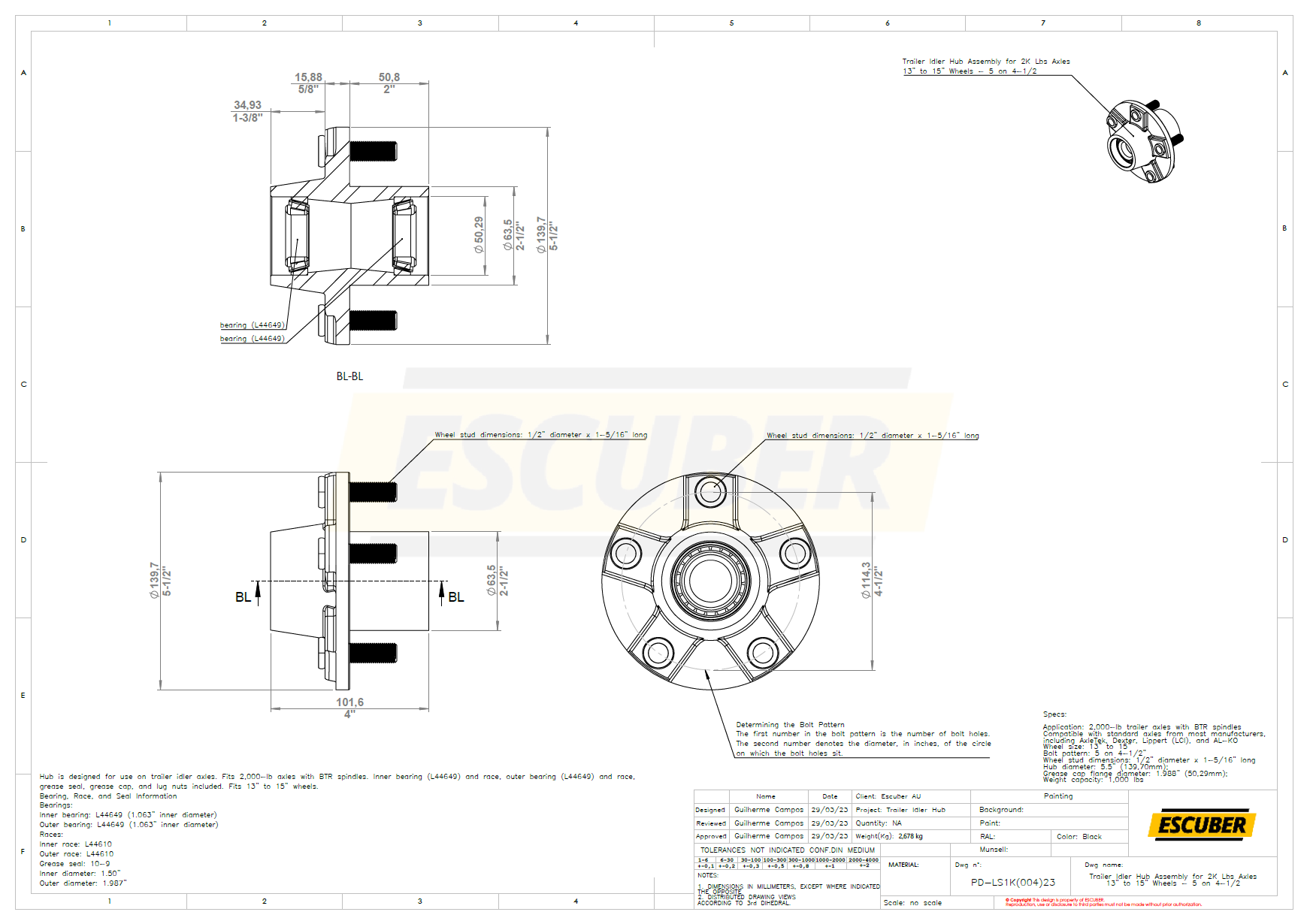

Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Specs:
Application: 2,000-lb trailer axles with BTR spindles
Compatible with standard axles from most manufacturers,
including AxleTek, Dexter, Lippert (LCI), and AL-KO
Wheel size: 13″ to 15″
Bolt pattern: 5 on 4-1/2″
Wheel stud dimensions: 1/2″ diameter x 1-5/16″ long
Hub diameter: 5.5″ (139,70mm);
Grease cap flange diameter: 1.988″ (50,29mm);
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, Weight capacity: 1,000 lbs.
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, Weight capacity: 1,000 lbs grease seal, grease cap, and lug nuts included. Fits 13″ to 15″ wheels.

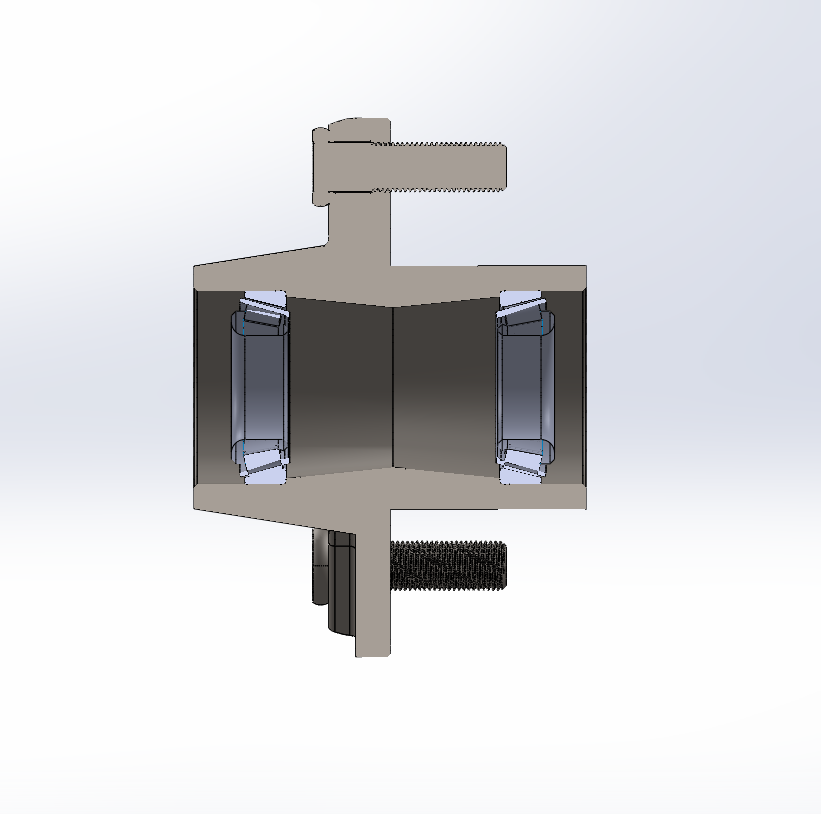

Bearing, Race, and Seal Information
Bearings:
Inner bearing: L44649 (1.063″ inner diameter)
Outer bearing: L44649 (1.063″ inner diameter)
Races:
Inner race: L44610
Outer race: L44610
Grease seal: 10-9
Inner diameter: 1.50″
Outer diameter: 1.987″
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes.
The second number denotes the diameter, in inches, of the circle
on which the bolt holes sit.
Be the first to review “Trailer Idler Hub Assembly for 2K Lbs Axles 13″ to 15″ Wheels – 5 on 4-1/2″”
A single PDF document for your download and viewing convenience:
- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
