Trailer Caravan Jockey Wheel Clamp 48mm 300kg – ALKO
$ 5,00

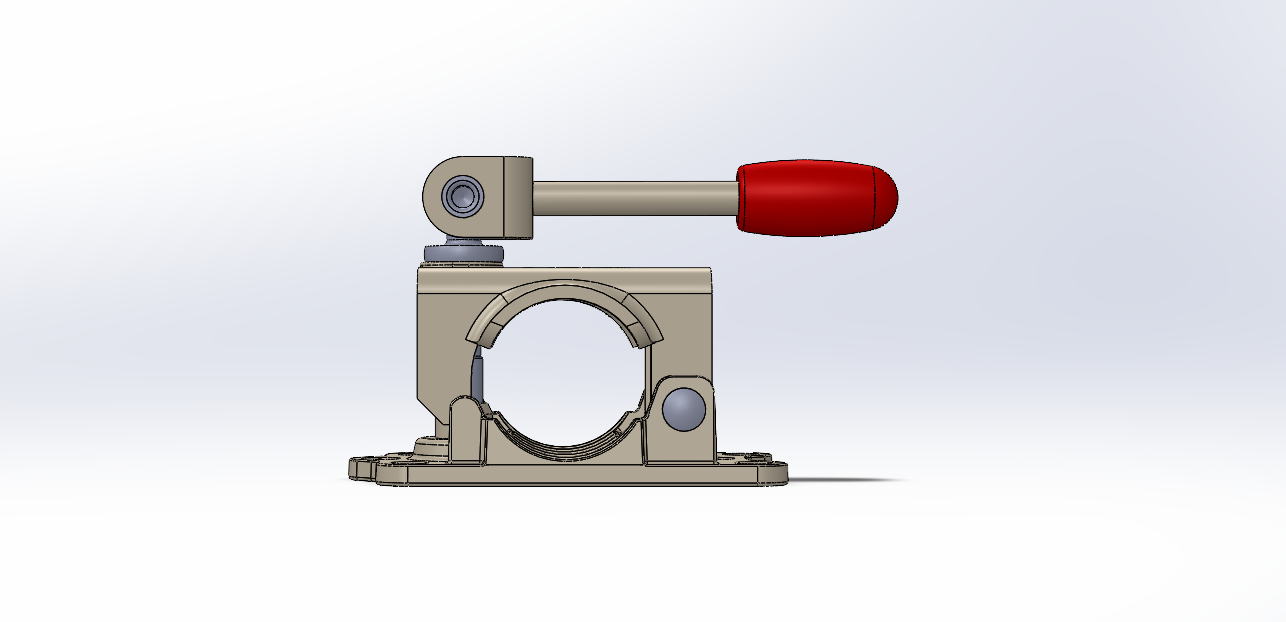

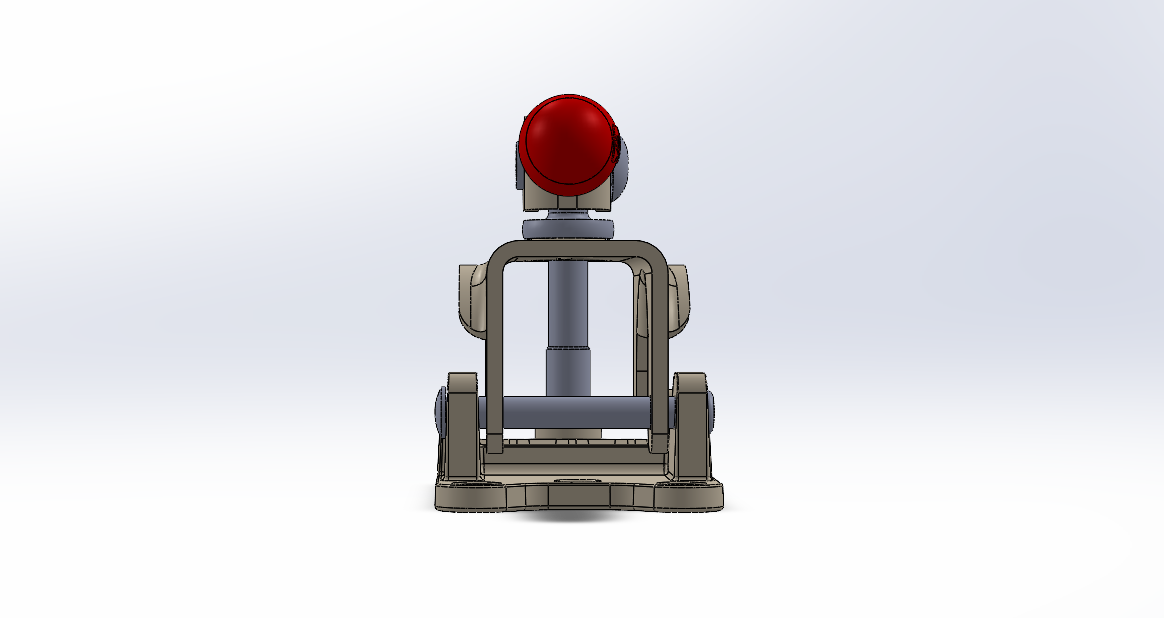

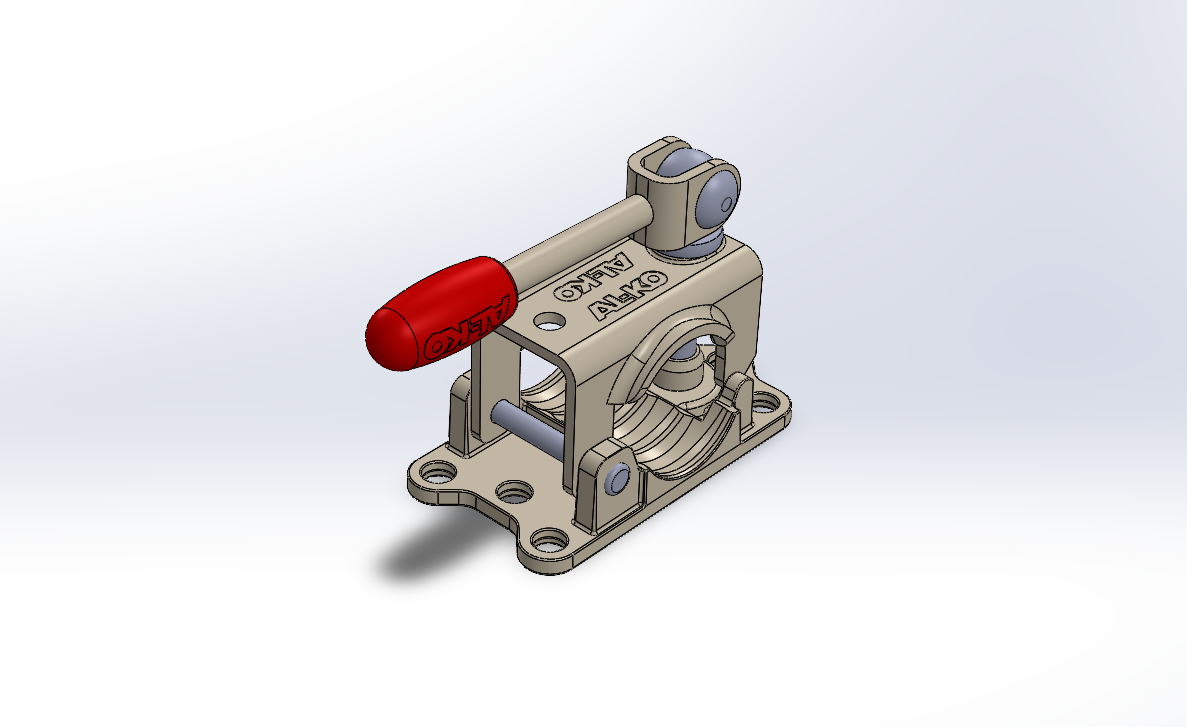

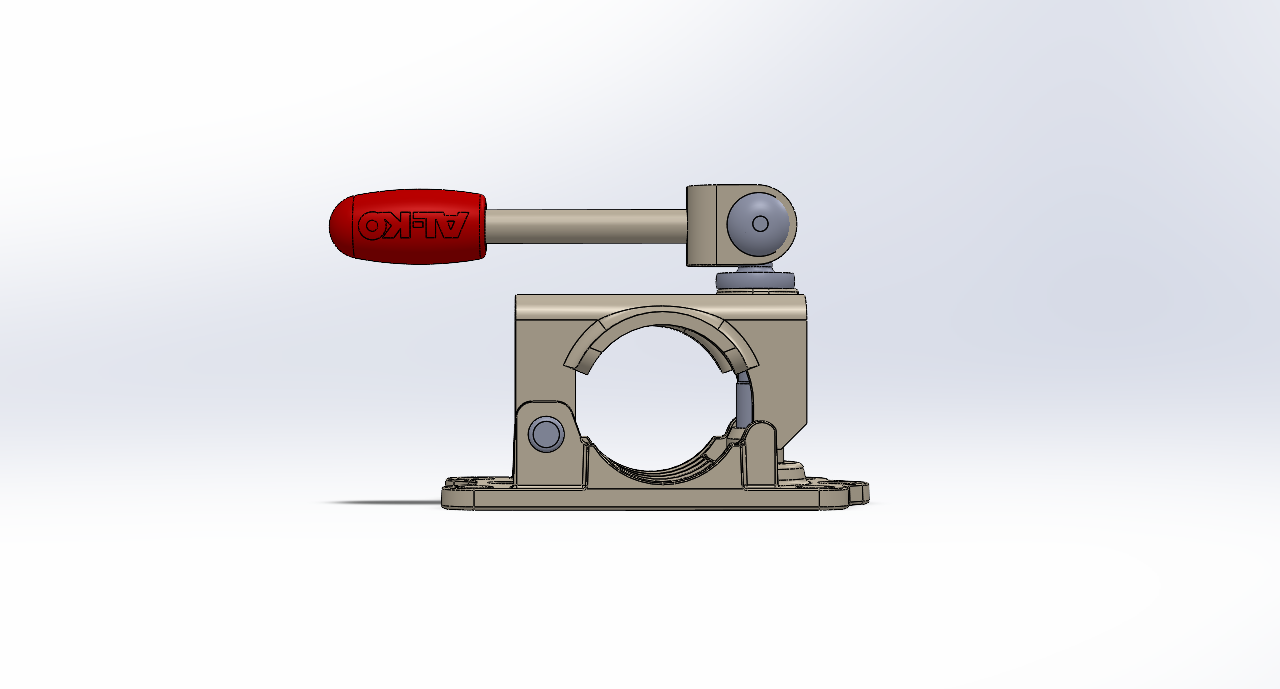

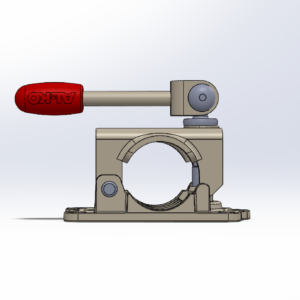

These clamps are used for holding jockey wheel’s and prop stand’s on the side of trailers. These have rubber grips on the end of the handle for easier use and simply screw clockwise or anti-clockwise to open or close the clamp. These are zinc plated to resist rust.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
These clamps are used for holding jockey wheel’s and prop stand’s on the side of trailers. These have rubber grips on the end of the handle for easier use and simply screw clockwise or anti-clockwise to open or close the clamp. These are zinc plated to resist rust.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
