Trailer Axle 1050 Long 2,000 lbs
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Specs:
Weight capacity: 2,000 lbs
Spring-center-to-spring-center length: 1050mm
Axle diameter: 1-3/4″
Wheel size: 13″ to 15″

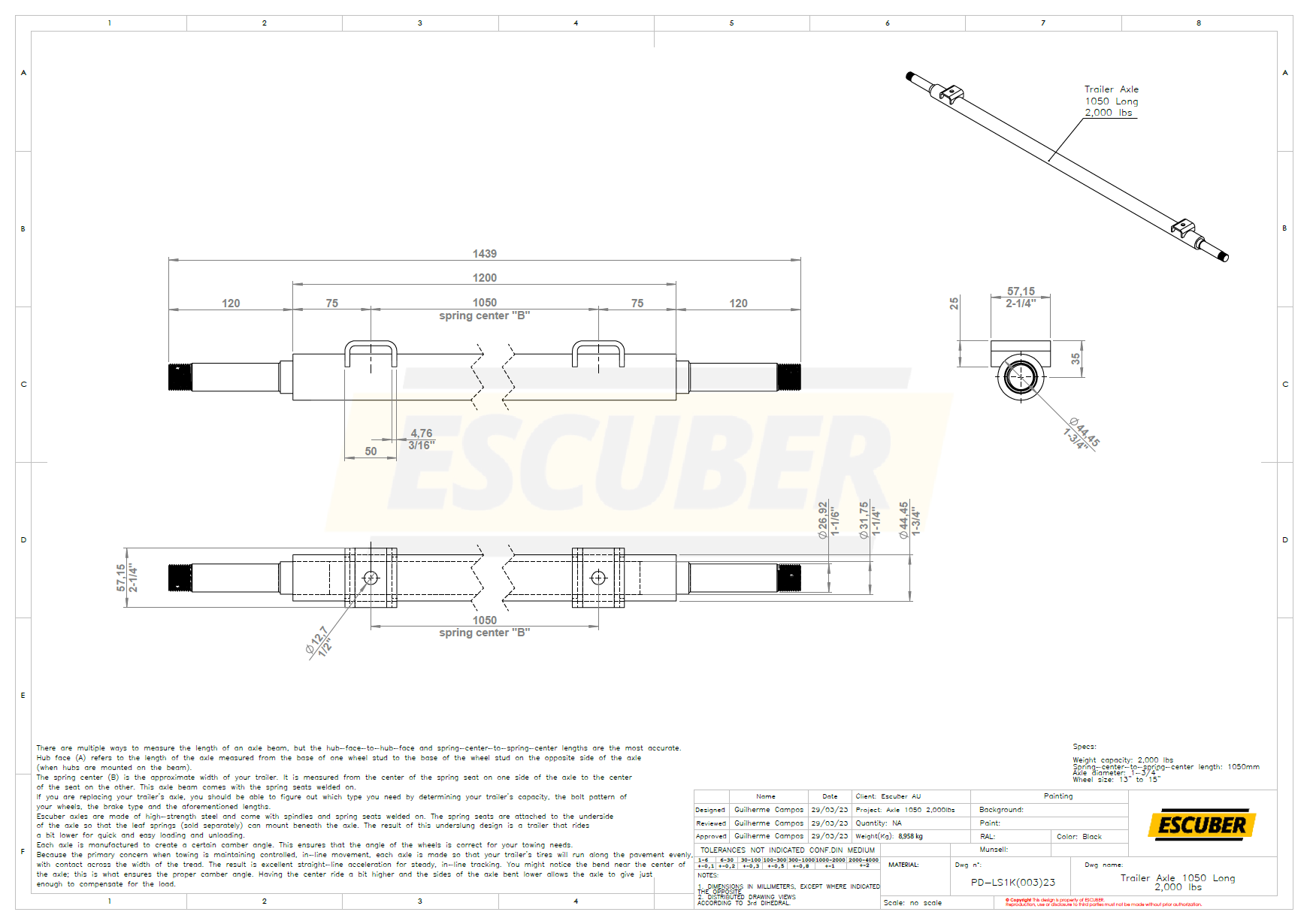

There are multiple ways to measure the length of an axle beam, but the hub-face-to-hub-face and spring-center-to-spring-center lengths are the most accurate.
Hub face (A) refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle (when hubs are mounted on the beam).

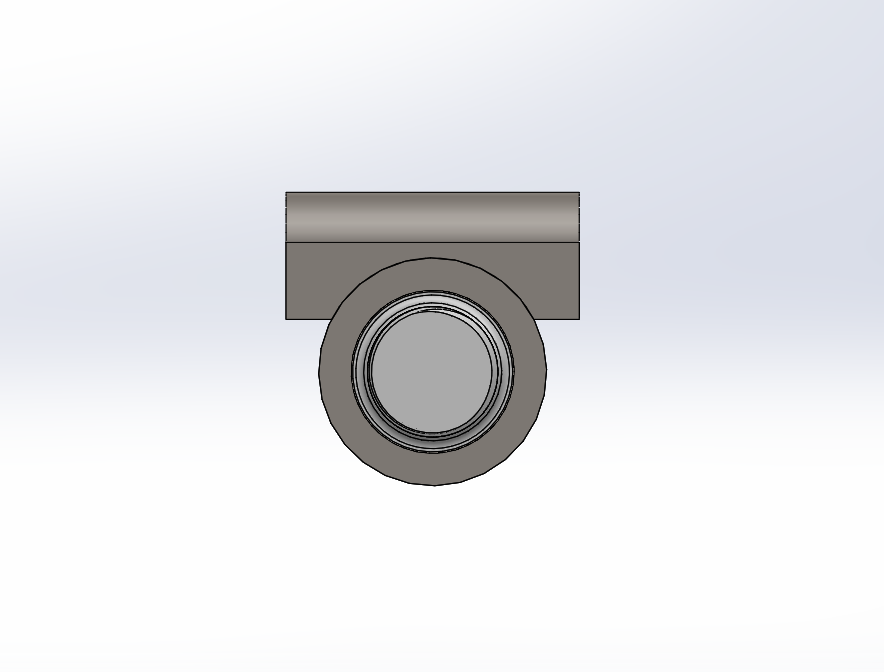

The spring center (B) is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other. This axle beam comes with the spring seats welded on.
If you are replacing your trailer’s axle, you should be able to figure out which type you need by determining your trailer’s capacity, the bolt pattern of your wheels, the brake type and the aforementioned lengths.

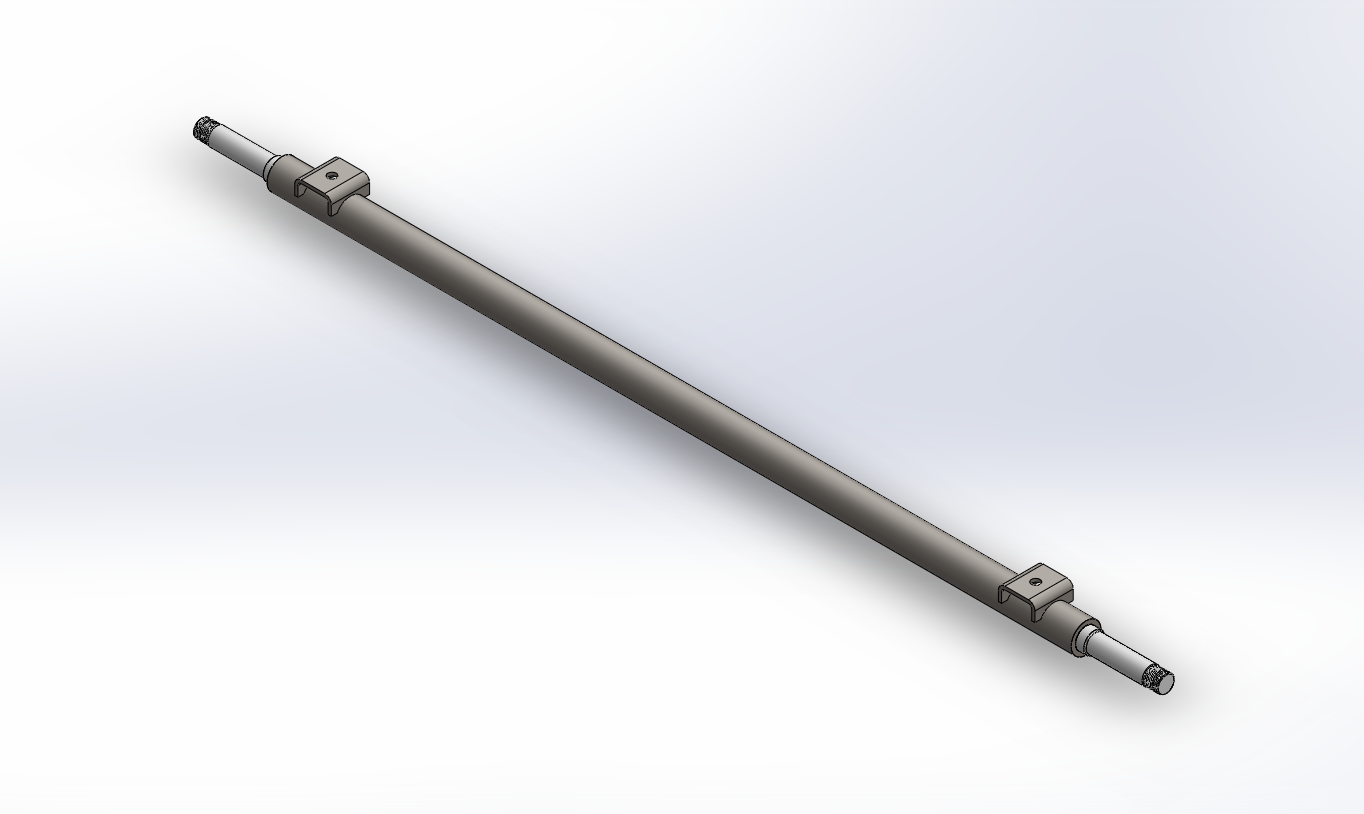

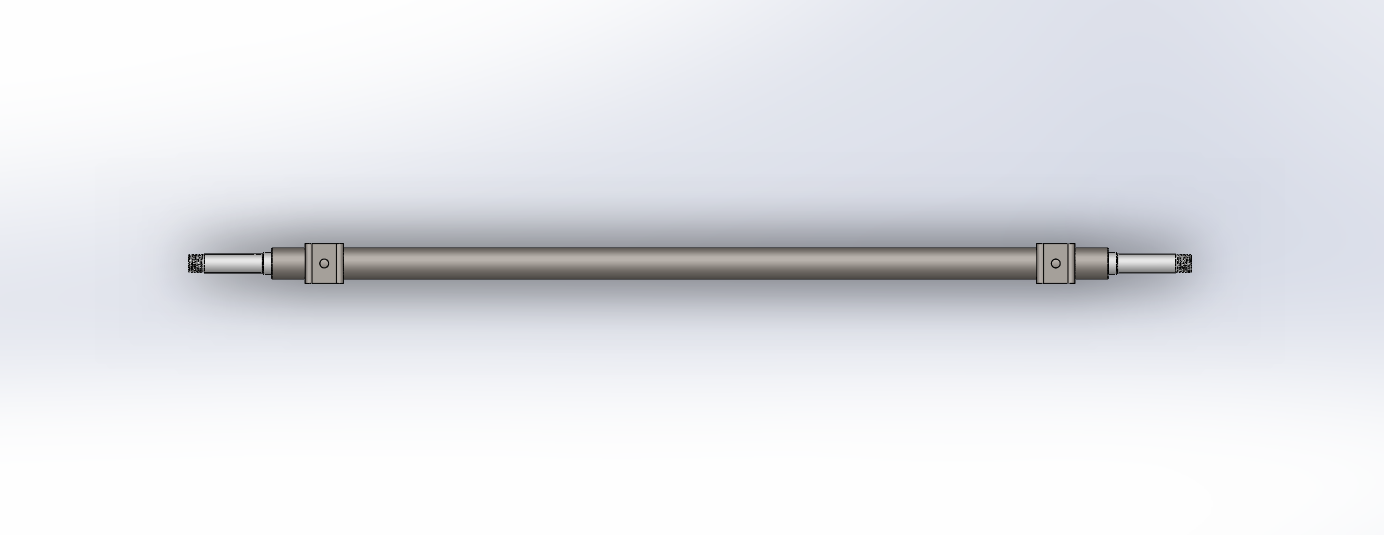

Escuber axles are made of high-strength steel and come with spindles and spring seats welded on. The spring seats are attached to the underside
of the axle so that the leaf springs (sold separately) can mount beneath the axle.
The result of this underslung design is a trailer that rides a bit lower for quick and easy loading and unloading.
Each axle is manufactured to create a certain camber angle. This ensures that the angle of the wheels is correct for your towing needs.
Because the primary concern when towing is maintaining controlled, in-line movement, each axle is made so that your trailer’s tires will run along the pavement evenly, with contact across the width of the tread.

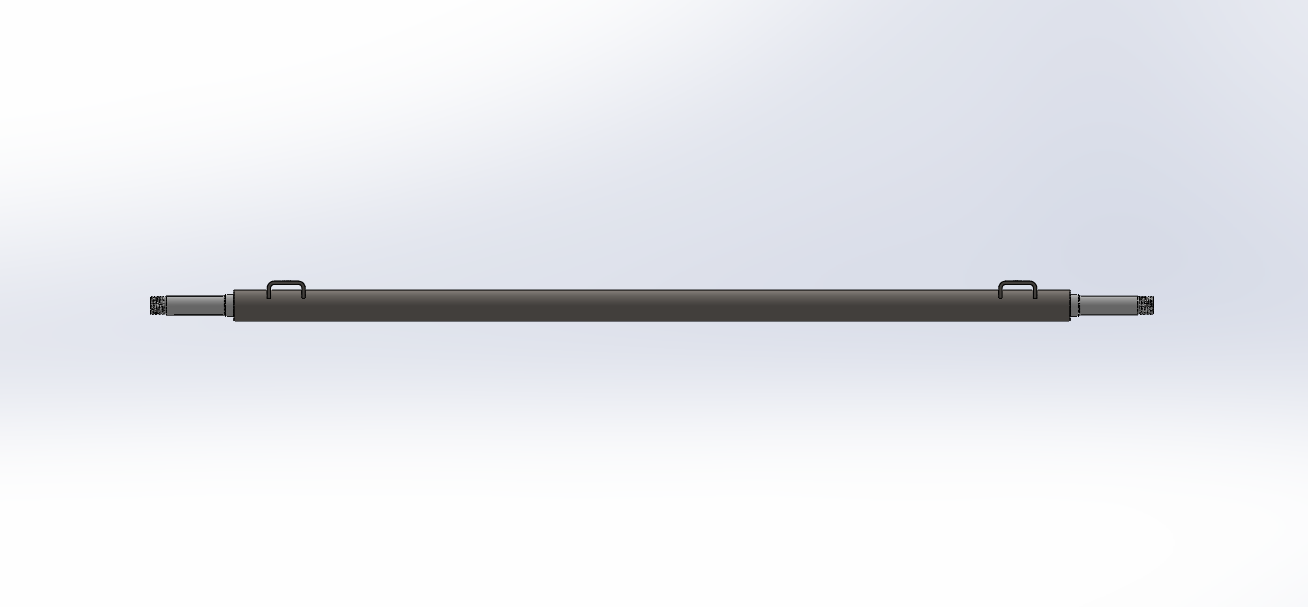

The result is excellent straight-line acceleration for steady, in-line tracking. You might notice the bend near the center of the axle; this is what ensures the proper camber angle. Having the center ride a bit higher and the sides of the axle bent lower allows the axle to give just enough to compensate for the load.
Be the first to review “Trailer Axle 1050 mm Long 2,000 lbs”
A single PDF document for your download and viewing convenience:
- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
