Project 29 – FREE Trailer Plan – Compact & Versatile Utility Trailer
Original price was: $ 45,00.$ 0,00Current price is: $ 0,00.
Try it for free and experience the quality and detail of our premium plans!
Download our Free Plan and start your DIY journey with this versatile utility trailer design. Perfect for getting hands-on and building something truly useful!
This clever single-axle box trailer design is compact, lightweight, and cost-effective to fabricate. With a maximum ATM of 750kg, brakes are generally not required (depending on your vehicle’s tow capacity). It offers a load capacity of up to 525kg and features deep sides, underslung spare wheel storage, and a drawbar-mounted nose cone (toolbox).
As with all our plans, this design is fully ADR-compliant, ensuring safety and reliability.
Instant Digital Download
Receive your plans instantly and get started on your trailer build without delay.
These plans adhere to the Australian National Code of Practice – Building Small Trailers (VSB1), making trailers built from them eligible for on-road registration in Australia.”
Trailer Specs:
- Box Size: 1500 × 1000 mm (4′ 11″x3′ 4″)
- Overall Size: 2700×1450 mm (8′ 10″ x 4′ 9″)
- Max. ATM: 750 kg (1600 lbs)
- TARE: ±225 kg (496 lbs)
- Load Capacity: up to 525 kg (1157 lbs)
- Construction: Channel, RHS & SHS (various sections)
- Suspension: Single Axle & Leaf Springs
- Features: Front toolbox sealed & secure, under-body spare wheel, light weight
- Contents: Detailed part & assembly drawings, assembly guide, parts & cutting lists, pictures and a number of optional drawing files (DXF & EXCEL files are an optional free download)
- File Size: 11,2MB (PDF)
The spare wheel is neatly tucked away under the front portion of the chassis, yet easily accessible when required – no need to unpack your cargo to get to it! One of the easiest trailers to build, our plans will provide all the necessary drawings, instructions, parts lists, and handy tips to enable you to build with confidence, knowing your trailer will conform to legal requirements.
Instant download in PDF format for viewing on any device. A few useful DXF & EXCEL files also provided.
- 1500×1000 mm load area – compact and light
- 500 mm high sides
- Lightweight design without any compromise in strength
- Load area up to 1.5 square meters, load volume over 1 cubic meter
- Sealed nose cone storage unit
- Under-body spare wheel storage
- Economic design for easy fabrication and assembly
- ADR compliant for your peace of mind, knowing your trailer will conform
This trailer is limited to a maximum ATM of 750kg (max. GTM of 660kg), therefore brakes are not required. However, check your tow vehicle’s un-braked towing capacity, as smaller vehicles may have maximum towing capacities less than 750kg. If you do require trailer brakes or wish to fit brakes for increased braking/stopping performance, please refer to one of our other box trailer plans.
A single PDF document for your download and viewing convenience:

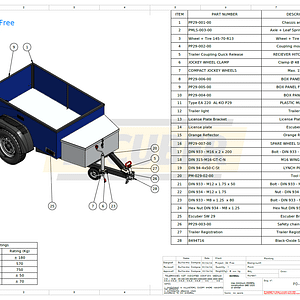

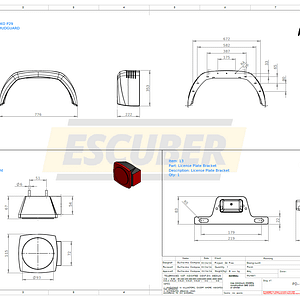

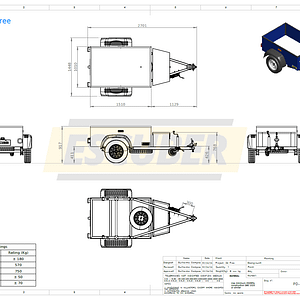

- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
