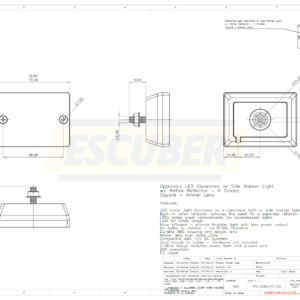

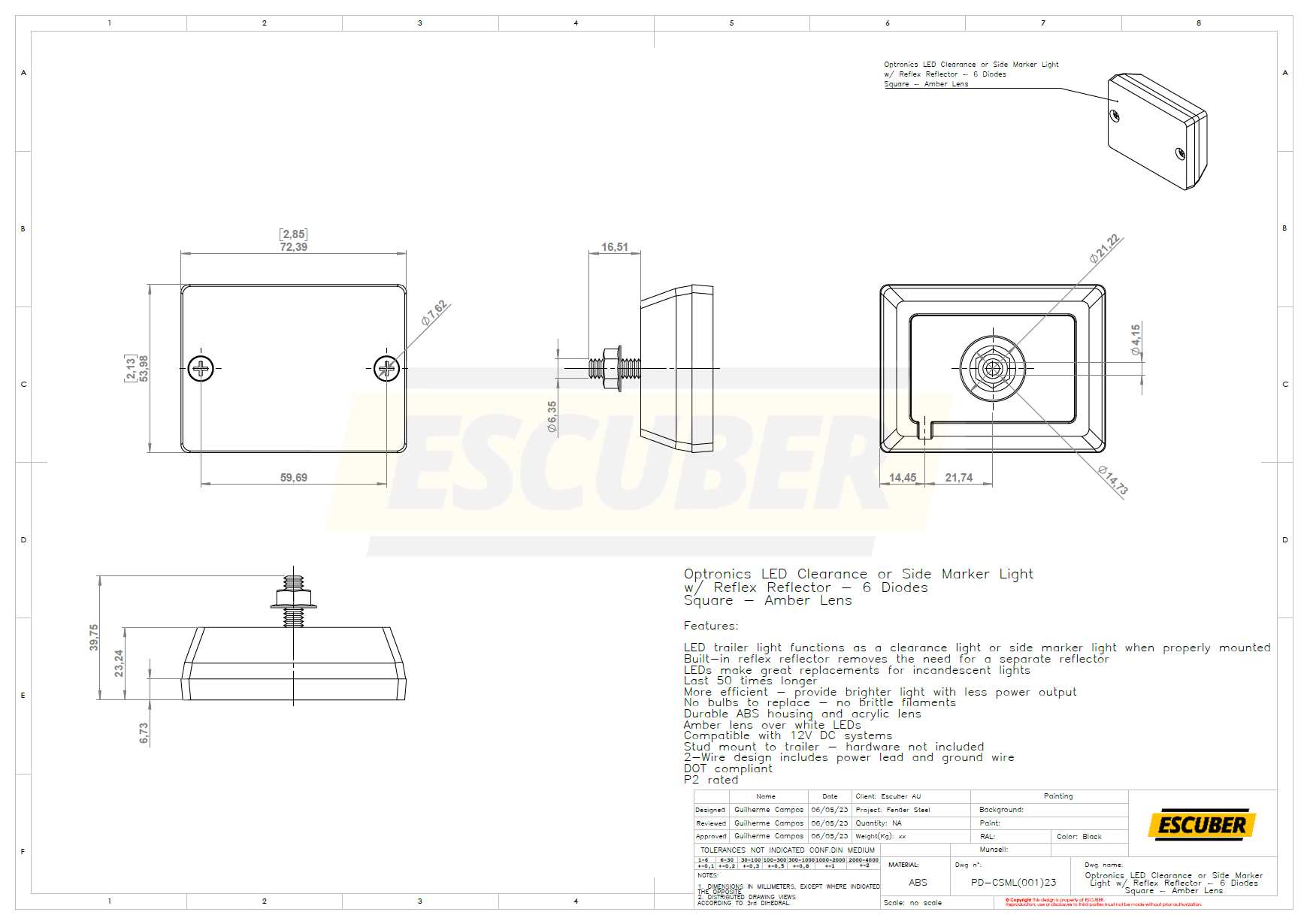

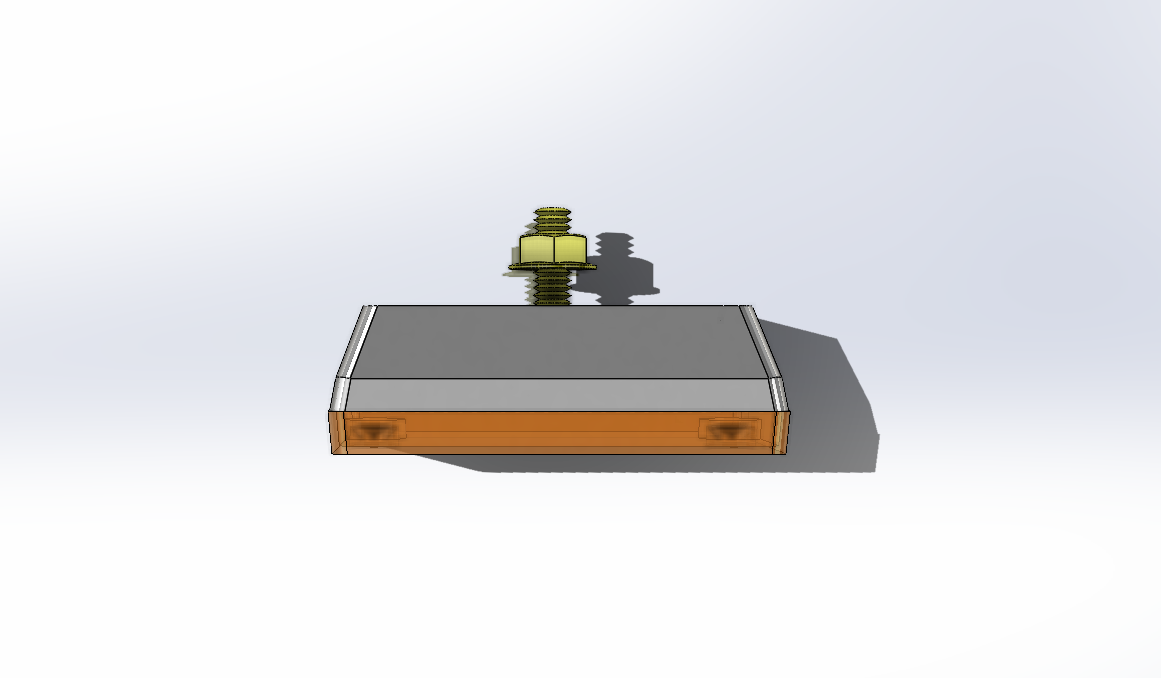

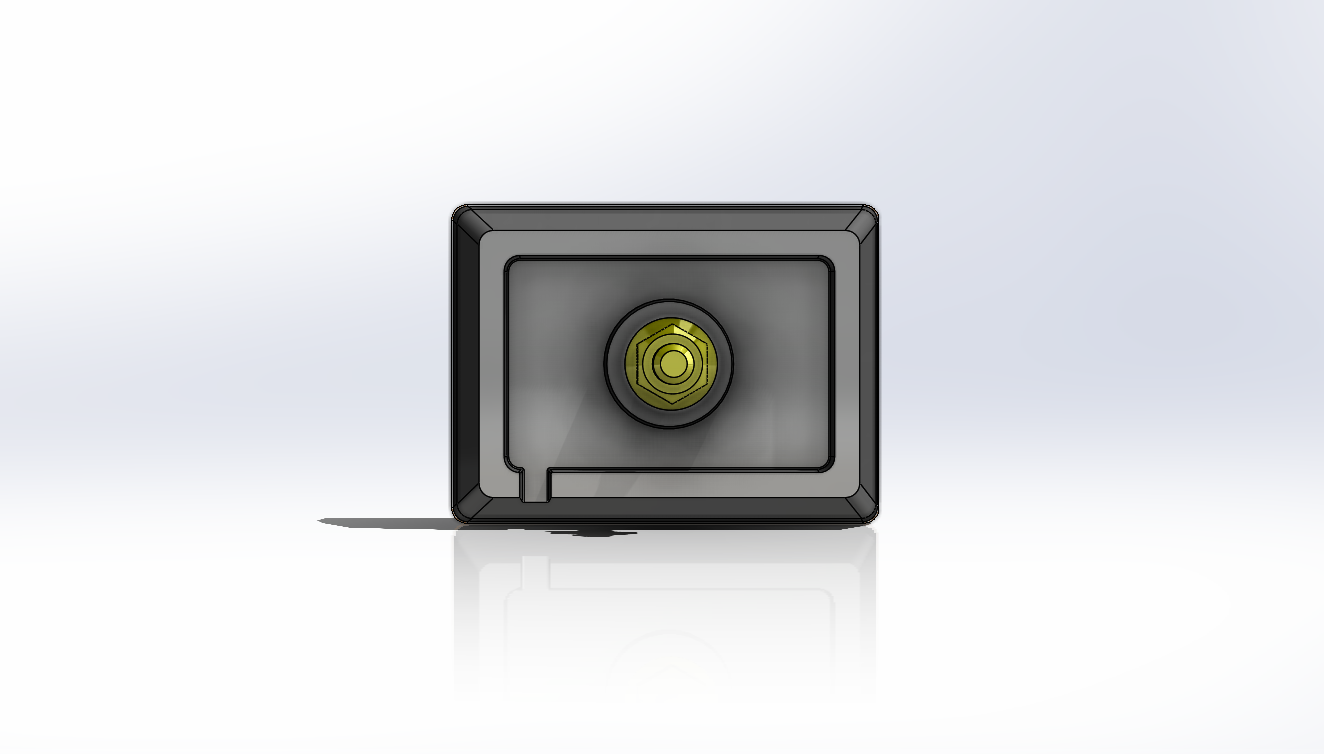

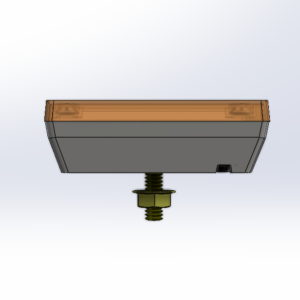

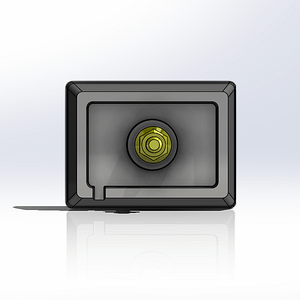

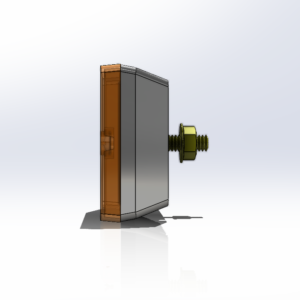

Optronics LED Clearance or Side Marker Light w/ Reflex Reflector – 6 Diodes – Square – Amber Lens
$ 5,00
2-7/8″ x 2-1/8″ Square. LED trailer light functions as a clearance or side marker light when properly mounted. Built-in reflex reflector. Durable ABS housing with black base. Surface mount – hardware not included. 2-Wire design. P2 rated.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
2-7/8″ x 2-1/8″ Square. LED trailer light functions as a clearance or side marker light when properly mounted. Built-in reflex reflector. Durable ABS housing with black base. Surface mount – hardware not included. 2-Wire design. P2 rated.
Features:
LED trailer light functions as a clearance light or side marker light when properly mounted
Built-in reflex reflector removes the need for a separate reflector
LEDs make great replacements for incandescent lights
Last 50 times longer
More efficient – provide brighter light with less power output
No bulbs to replace – no brittle filaments
Durable ABS housing and acrylic lens
Amber lens over white LEDs
Compatible with 12V DC systems
Stud mount to trailer – hardware not included
2-Wire design includes power lead and ground wire
DOT compliant
P2 rated
Specs:
Dimensions: 2-7/8″ long x 2-1/8″ tall x 15/16″ deep
Diodes: 6
Power draw at 12.8V: 0.054 amps
Lifetime warranty on LEDs
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
