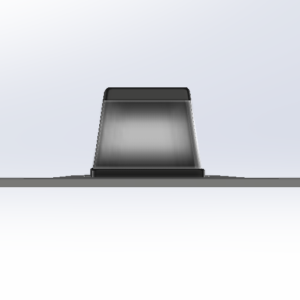

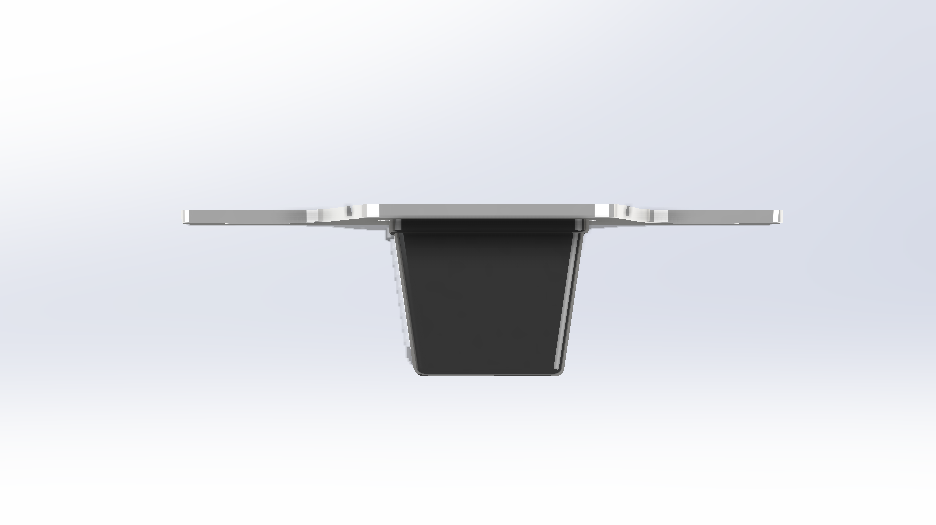

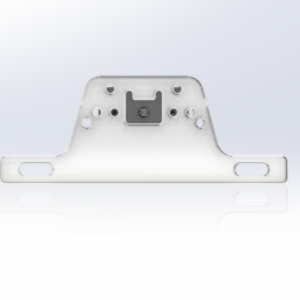

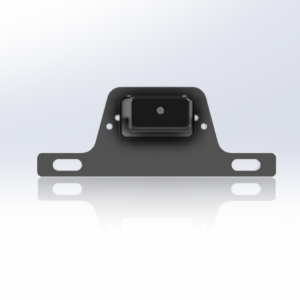

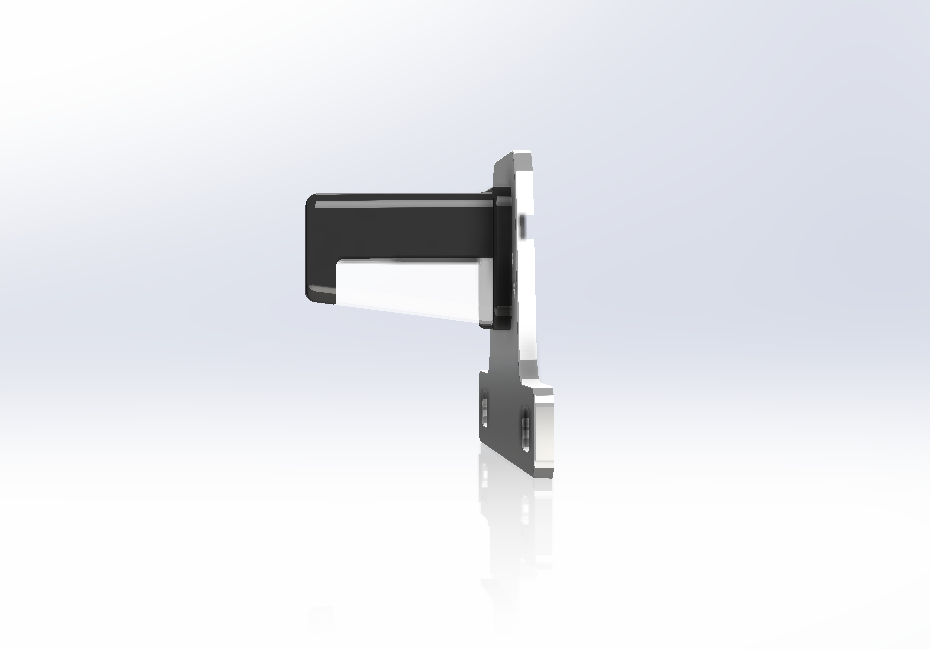

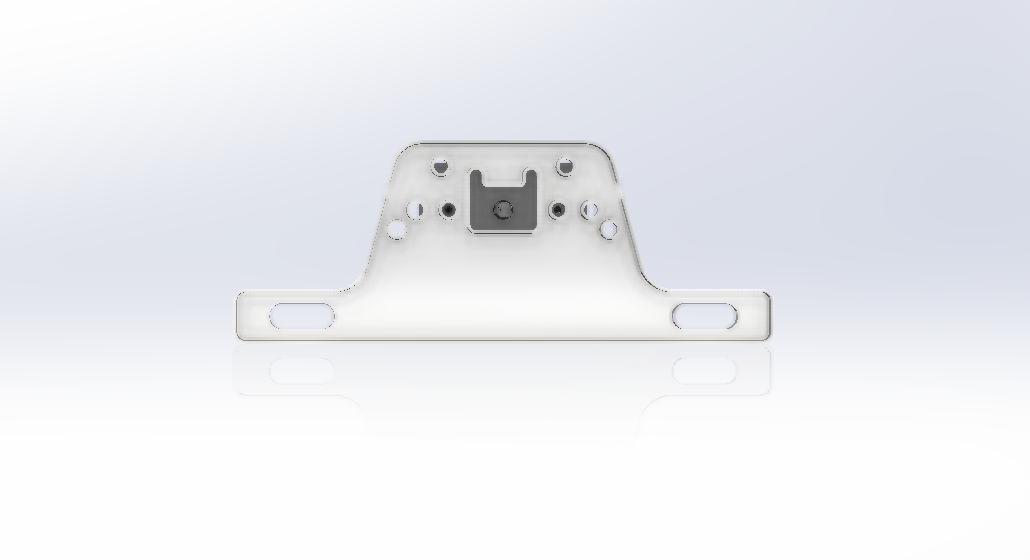

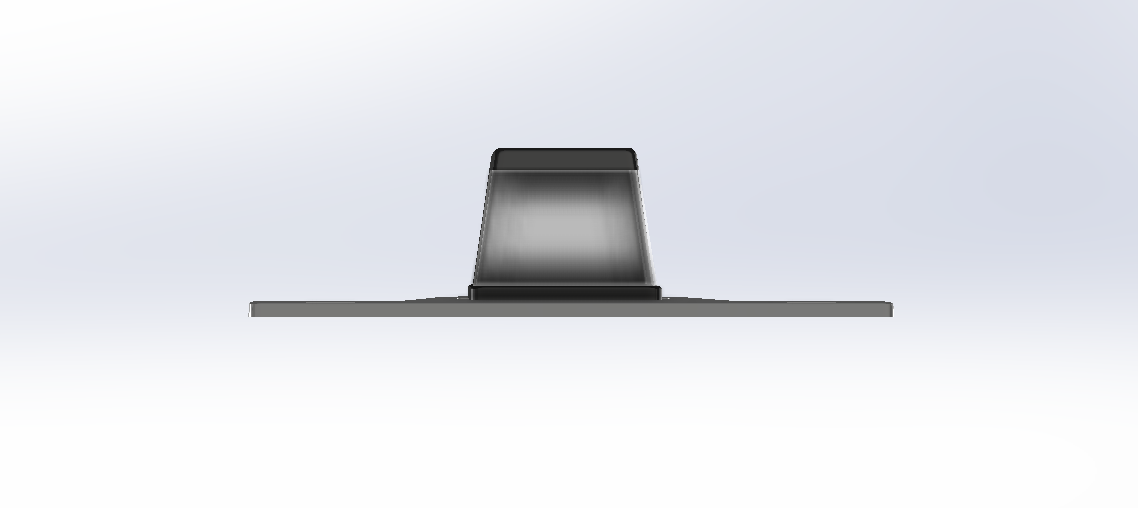

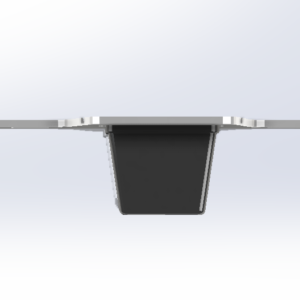

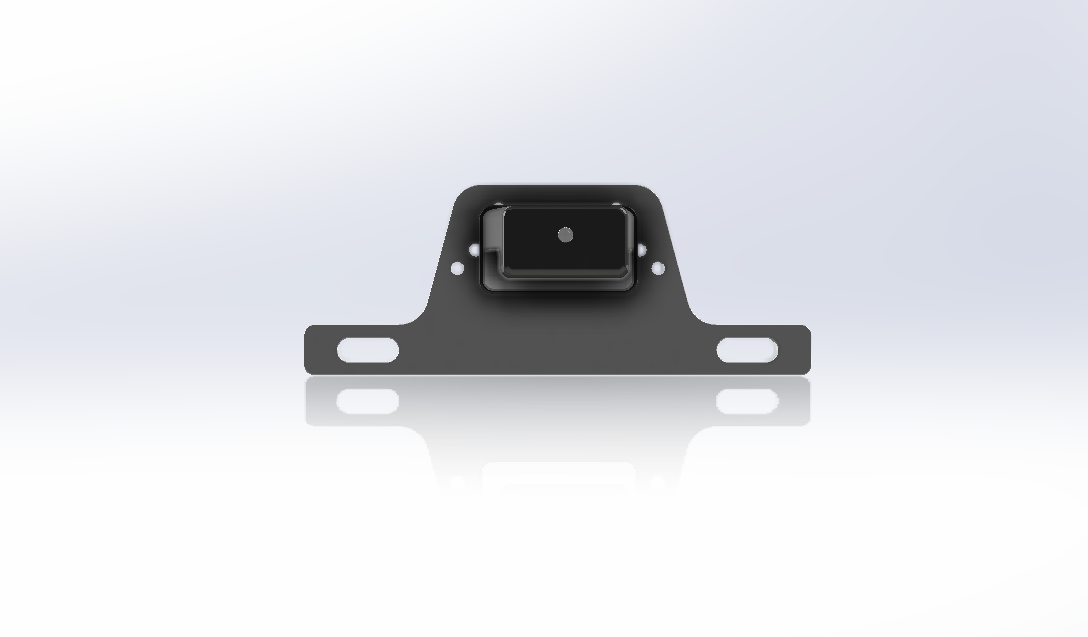

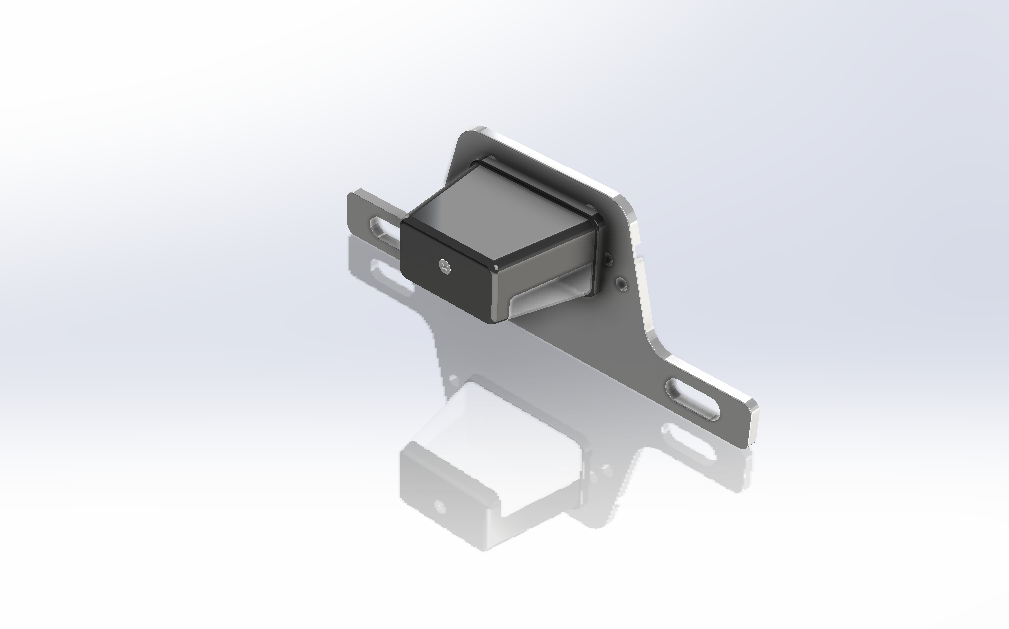

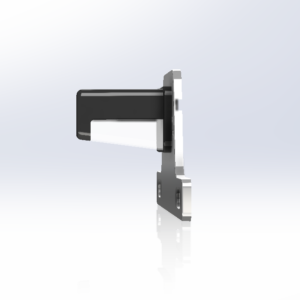

LED trailer light
With ABS mounting bracket illuminates your license plate.
Durable polycarbonate lens and housing.
Surface mount to trailer with bracket.
2-Wire design.
Features:
LED light illuminates your trailer’s license plate
LEDs make great replacements for incandescent lights
Last 50 times longer
More efficient – provide brighter light with less power output
No bulbs to replace – no brittle filaments
Durable polycarbonate housing and lens
Clear lens over white LEDs
Compatible with 12V DC systems
Surface mount to trailer with ABS plastic mounting bracket – hardware not included
2-Wire design includes power lead and ground wire
DOT compliant
Specs:
Dimensions: 8-5/8″ wide x 3-1/4″ tall x 2-5/16″ long
Distance between mounting holes (center on center): 3-3/8″
Diodes: 5
Power draw at 12.8V: 0.046 amps
Lifetime warranty on LEDs
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
