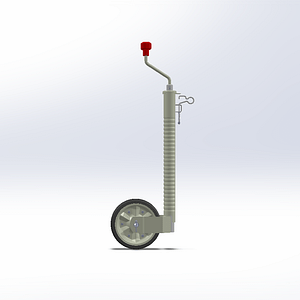

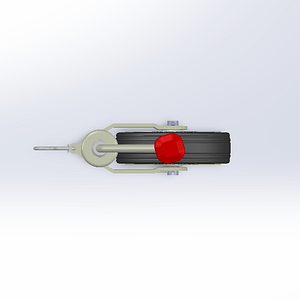

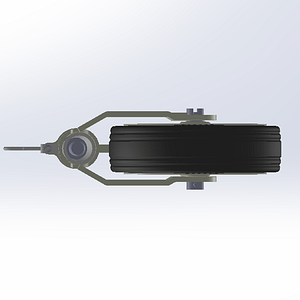

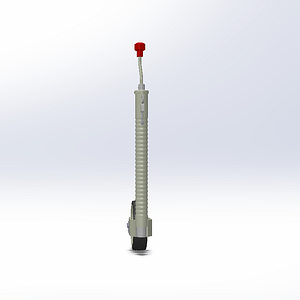

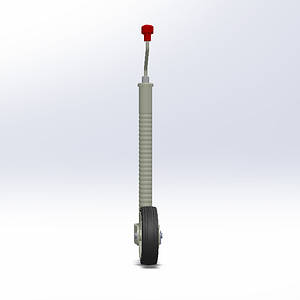

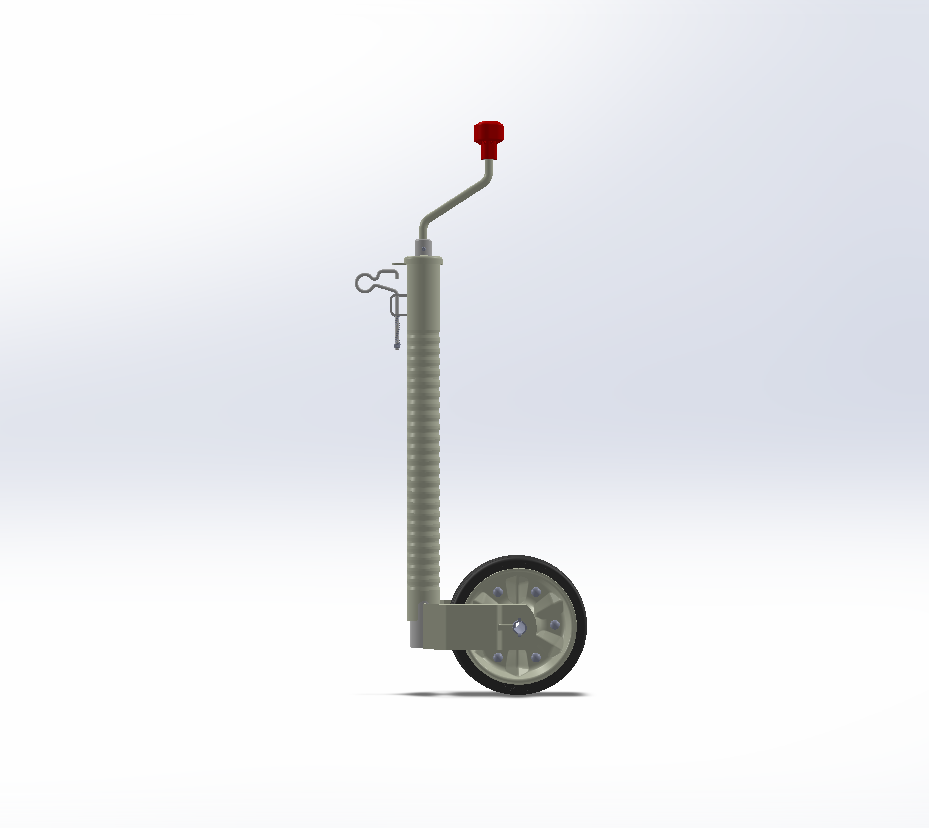

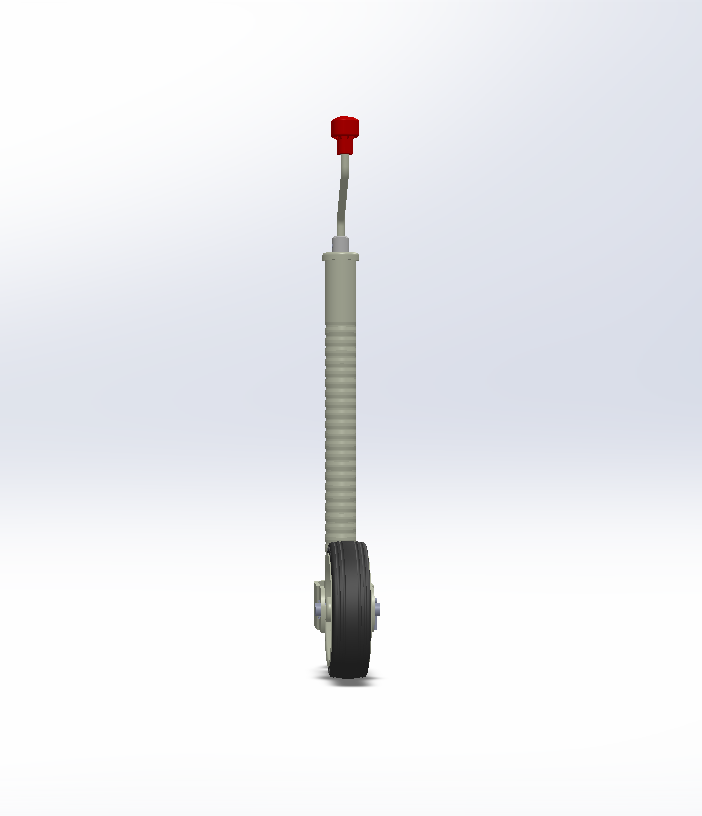

JOCKEY WHEEL 48 Ø, 300 KG with anti-slip device
$ 5,00
Prevents the crank from shaking loose

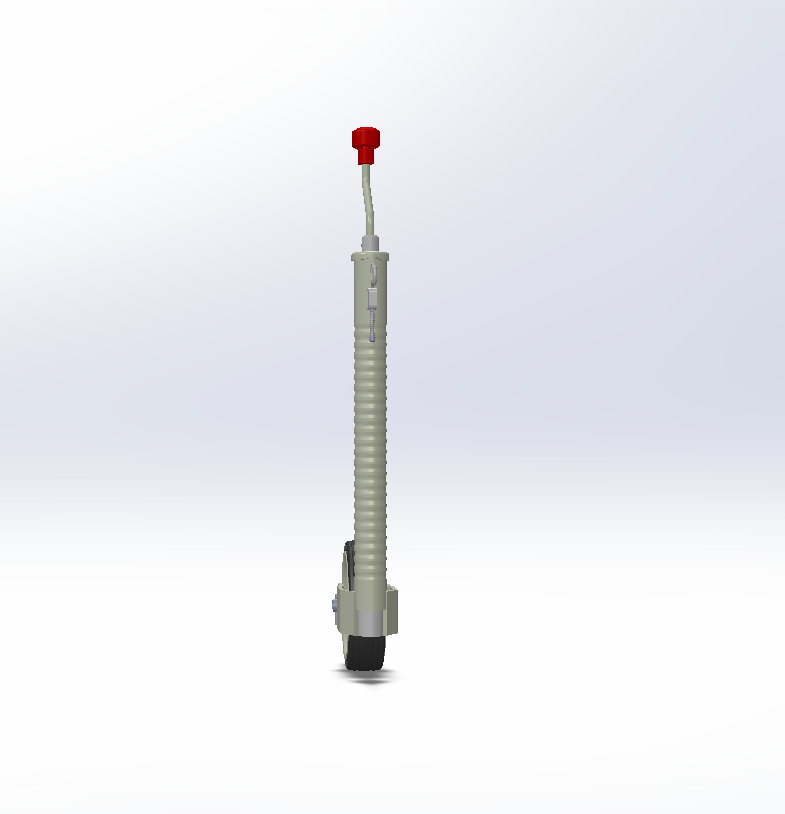

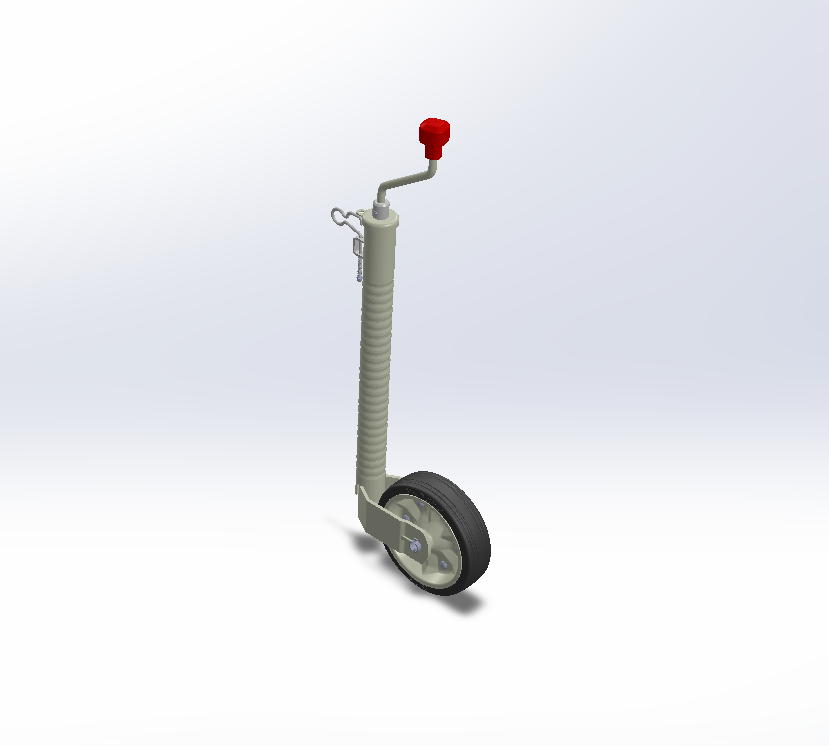

During towing, vibrations can move the crank. Consequently, it is possible that the inside tube with wheel could move downwards out of the outside tube. A wire bracket welded onto the outside tube can be hooked onto the crank in this jockey wheel, thereby preventing this extreme case.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Prevents the crank from shaking loose
During towing, vibrations can move the crank. Consequently, it is possible that the inside tube with wheel could move downwards out of the outside tube. A wire bracket welded onto the outside tube can be hooked onto the crank in this jockey wheel, thereby preventing this extreme case.
Secures against slipping

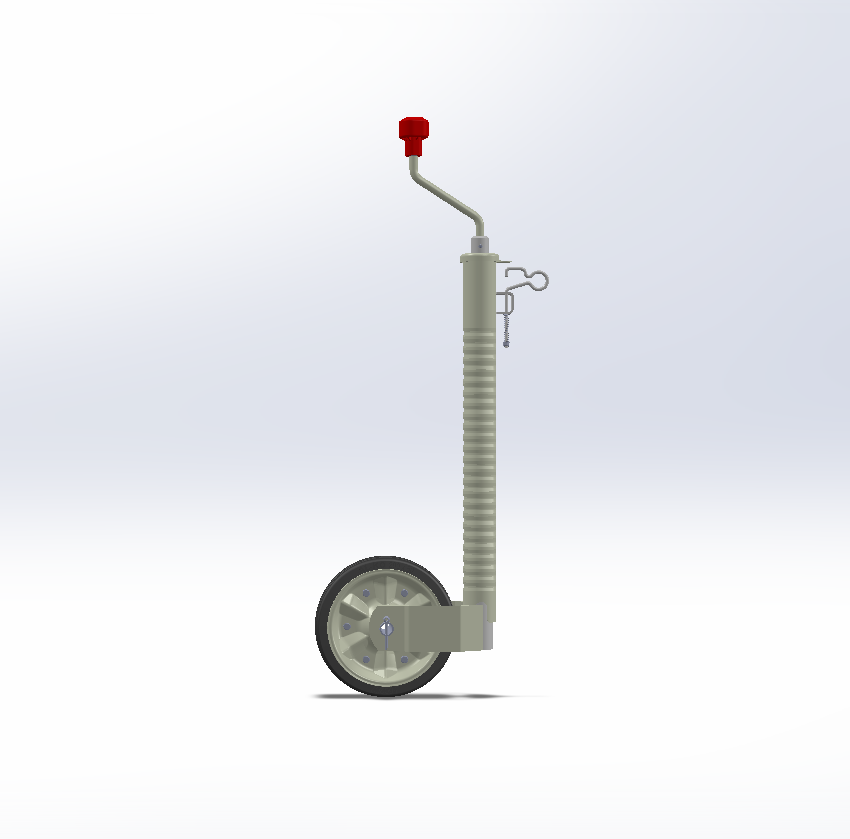

The outside tube of the jockey wheel has fluted indentations. The top part of the clamp of the new AE cast-iron Profi or the corresponding cast clamp have corresponding grooves. If the T-Bar of the clamp is only tightened slightly, the jockey wheel cannot slip through, which is what we refer to as an anti-slip device. If the T-Bar is not tightened at all, this anti-slip device will not function either.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Be the first to review “JOCKEY WHEEL 48 Ø, 300 KG with anti-slip device”
A single PDF document for your download and viewing convenience:

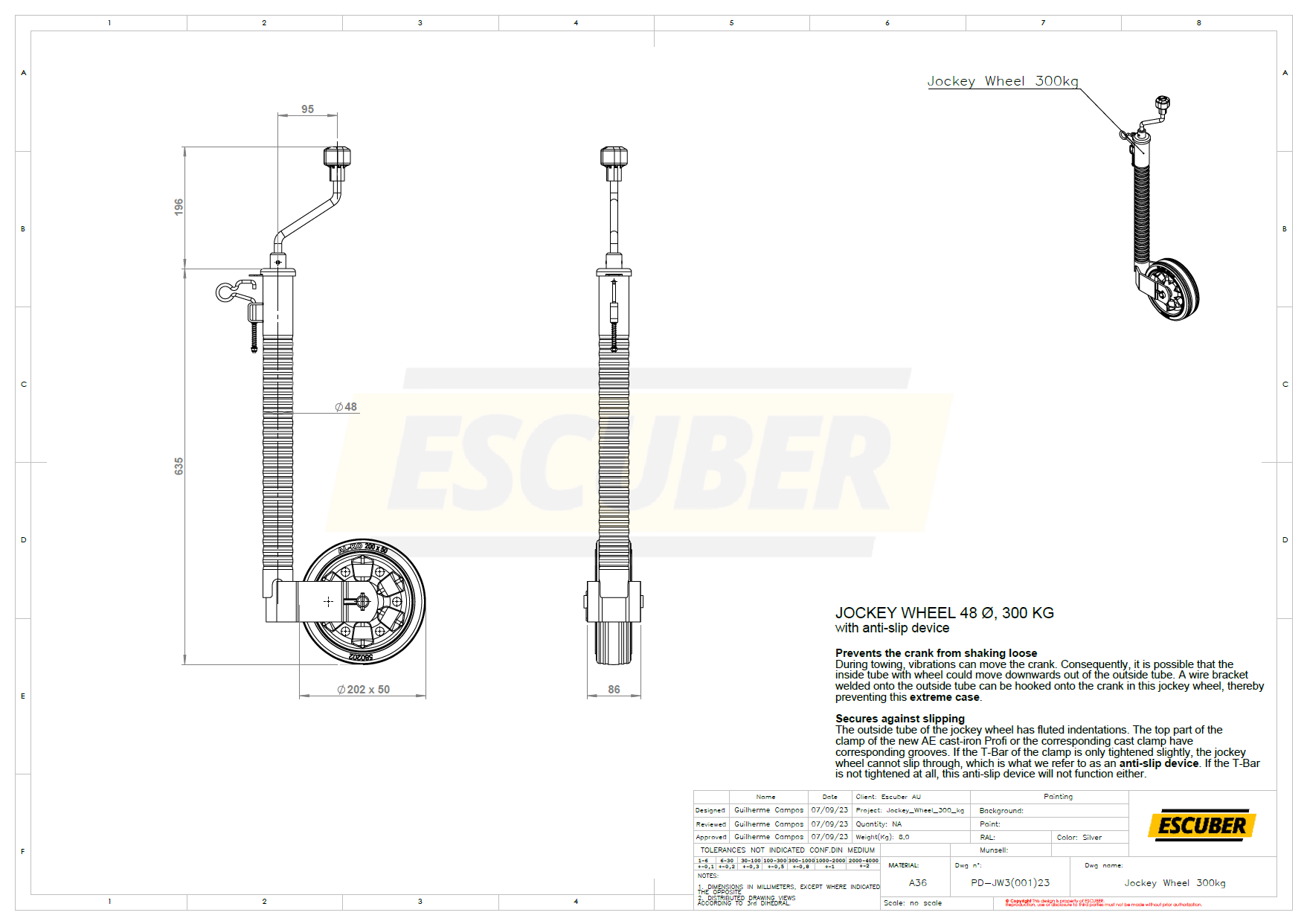

- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
Reviews
There are no reviews yet.
