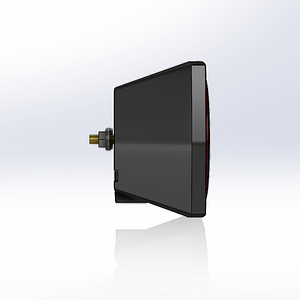

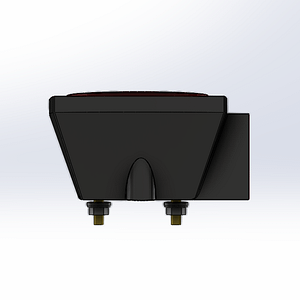

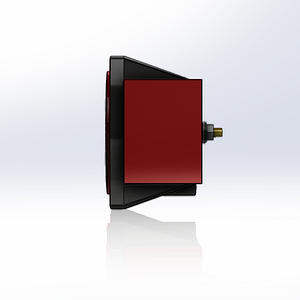

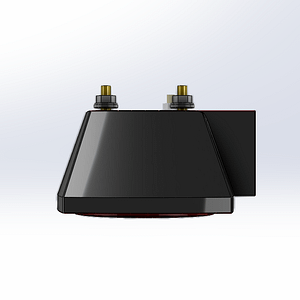

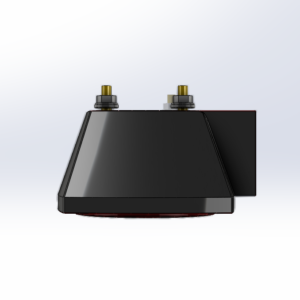

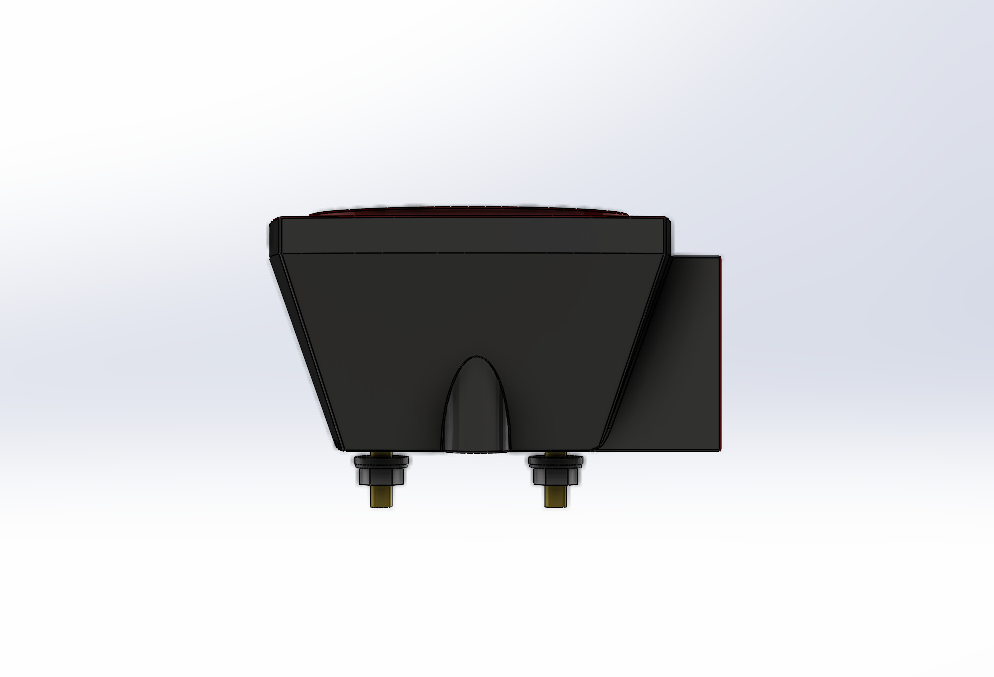

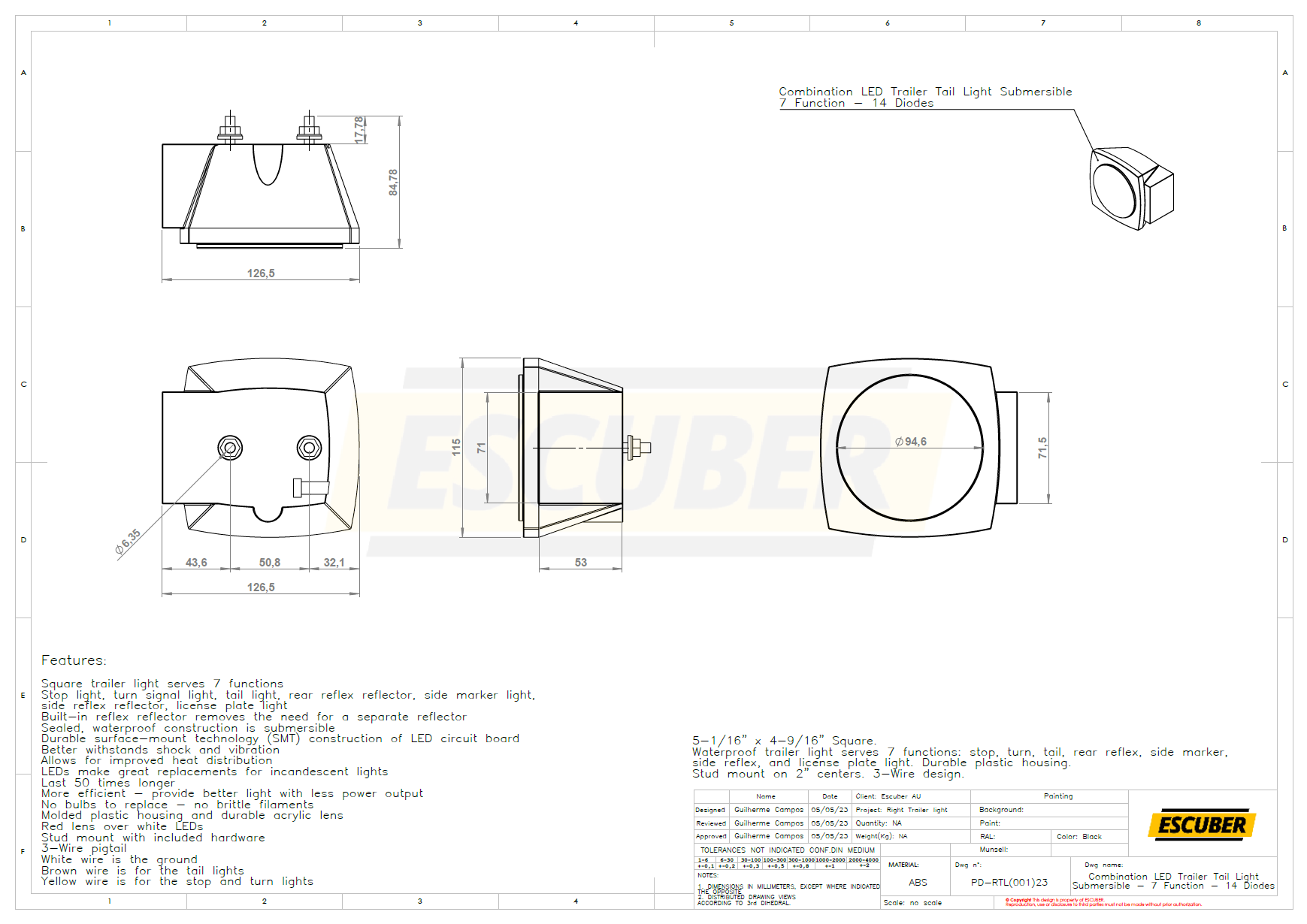

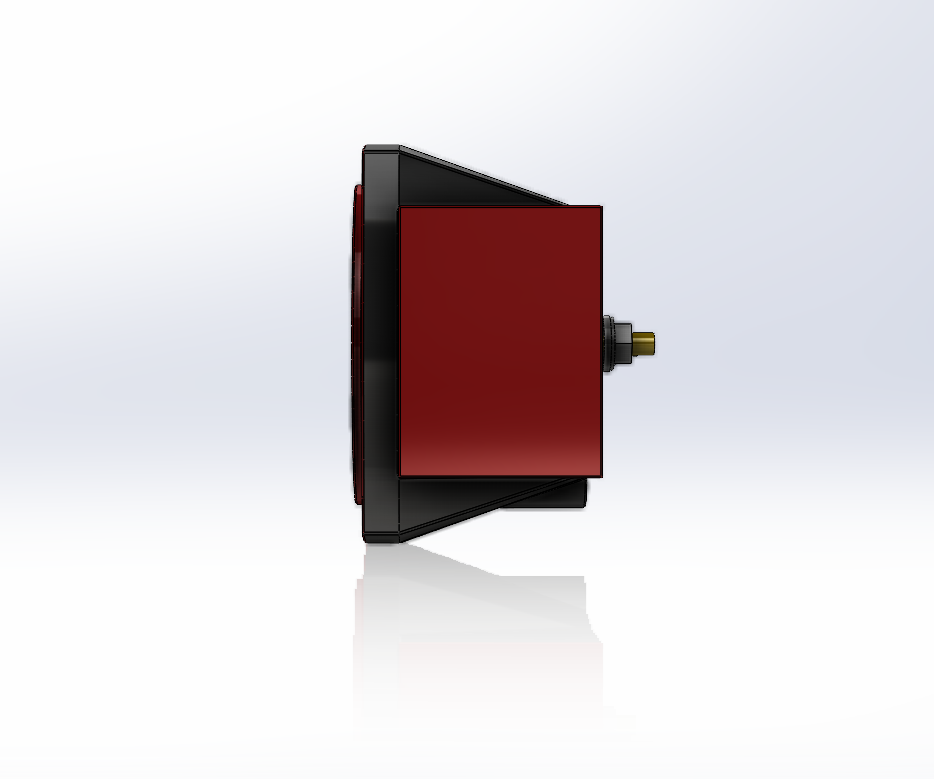

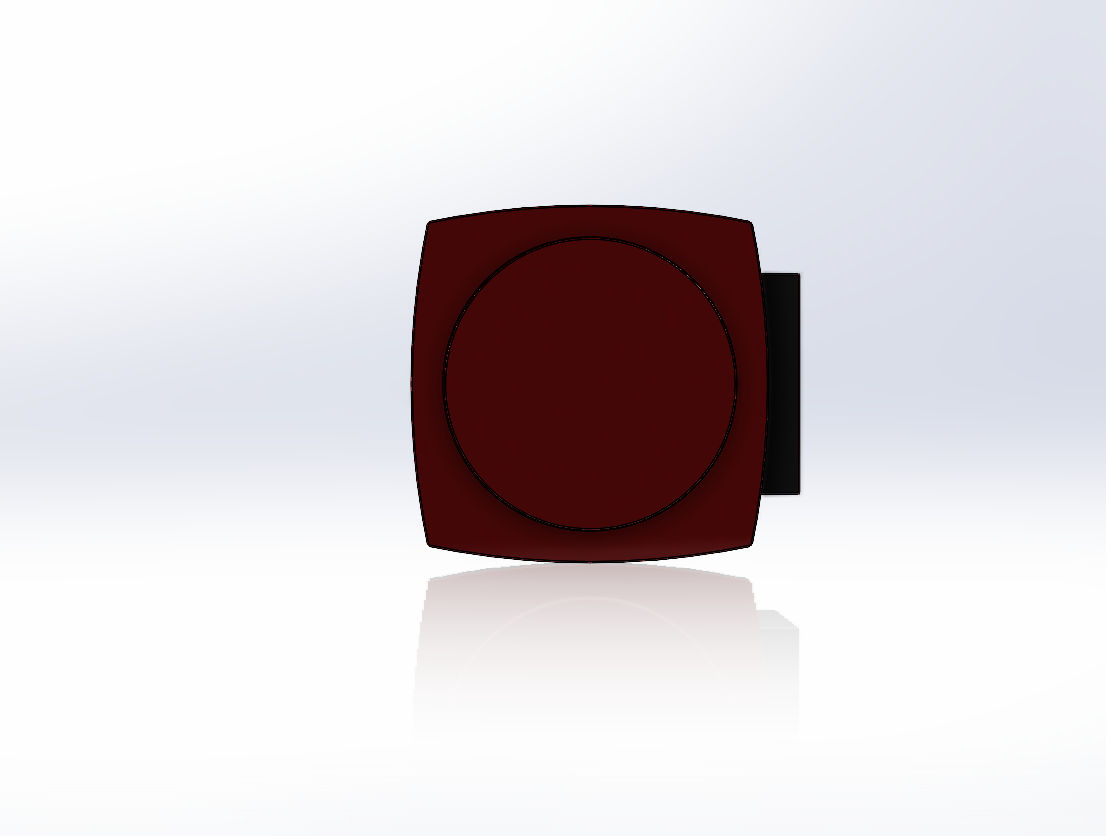

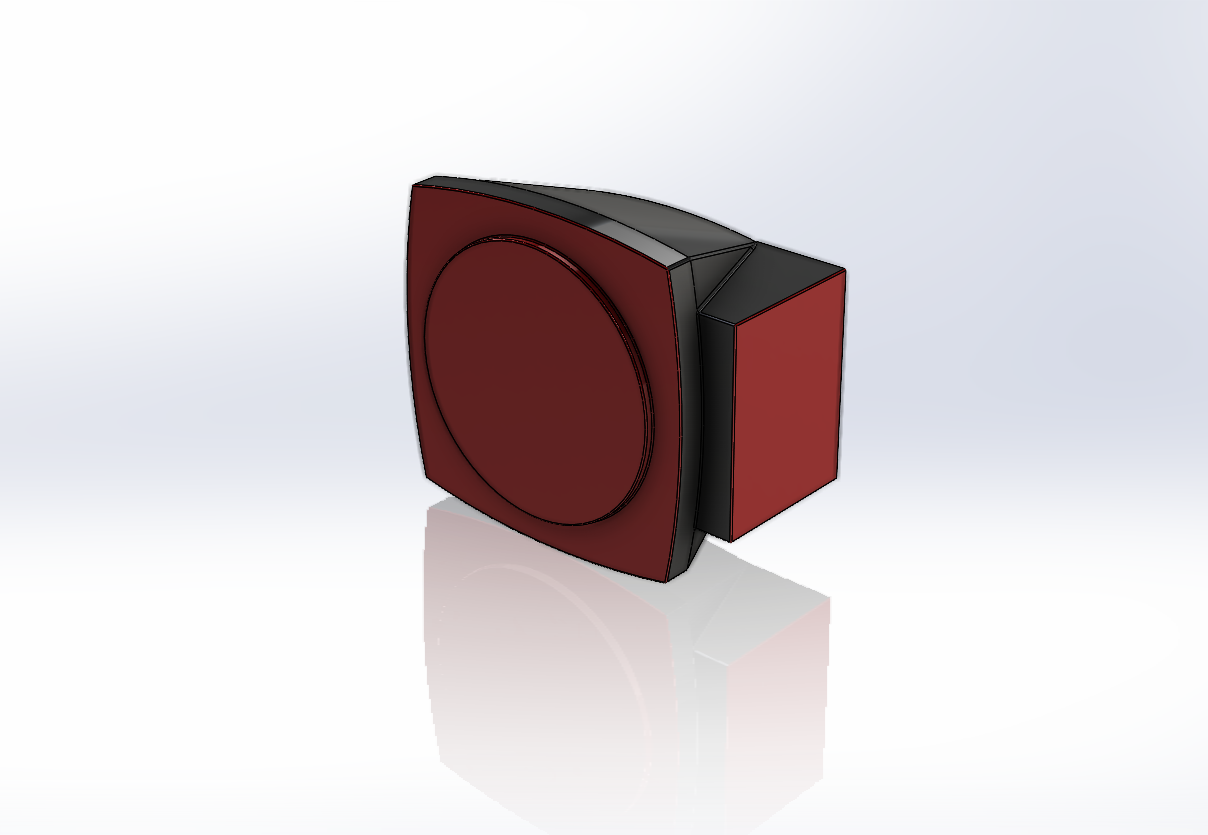

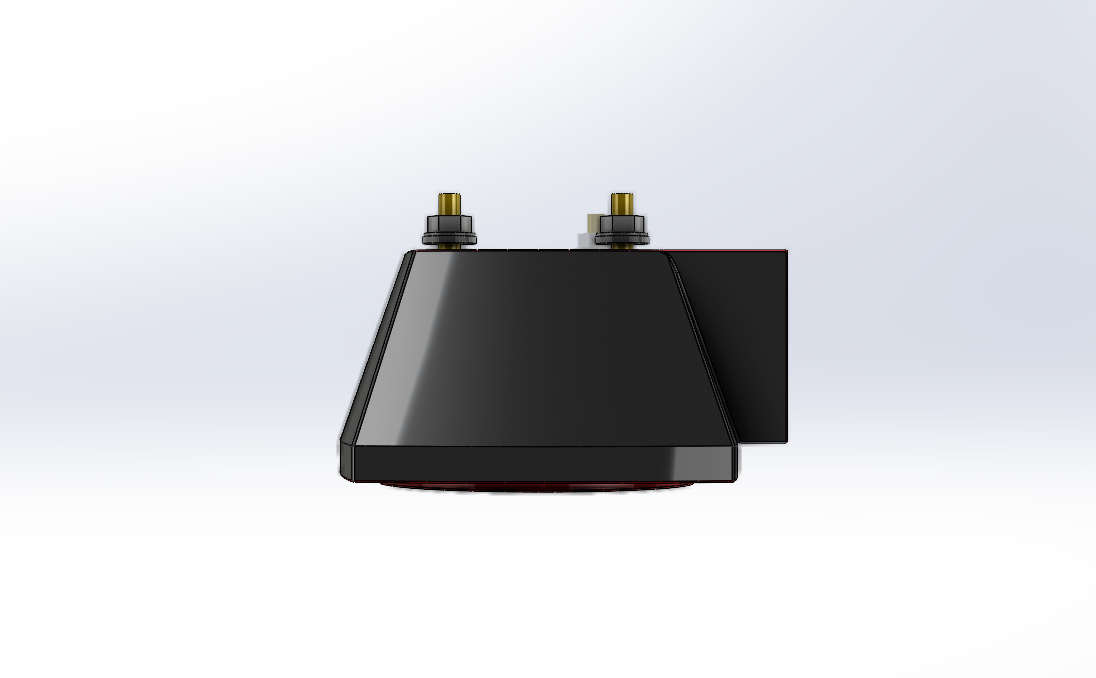

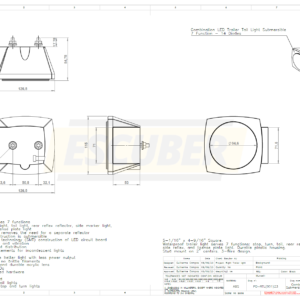

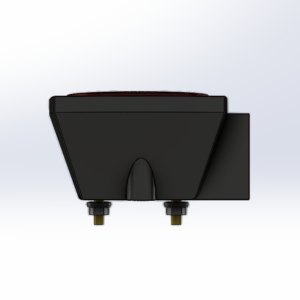

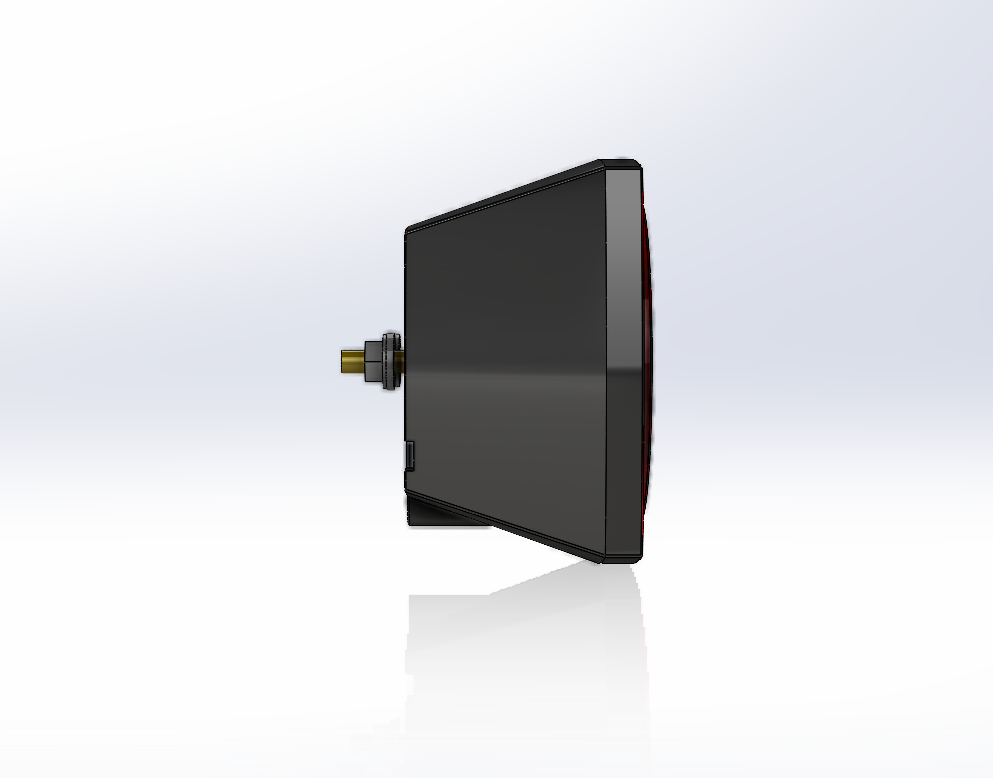

Combination LED Trailer Tail Light – Submersible – 7 Function – 14 Diodes
$ 5,00
Waterproof trailer light:
Serves 7 functions: stop, turn, tail, rear reflex, side marker, side reflex, and license plate light.
Durable plastic housing.

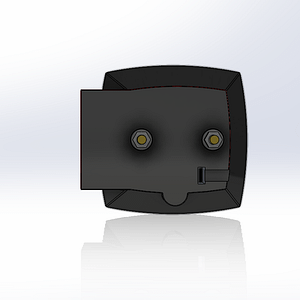

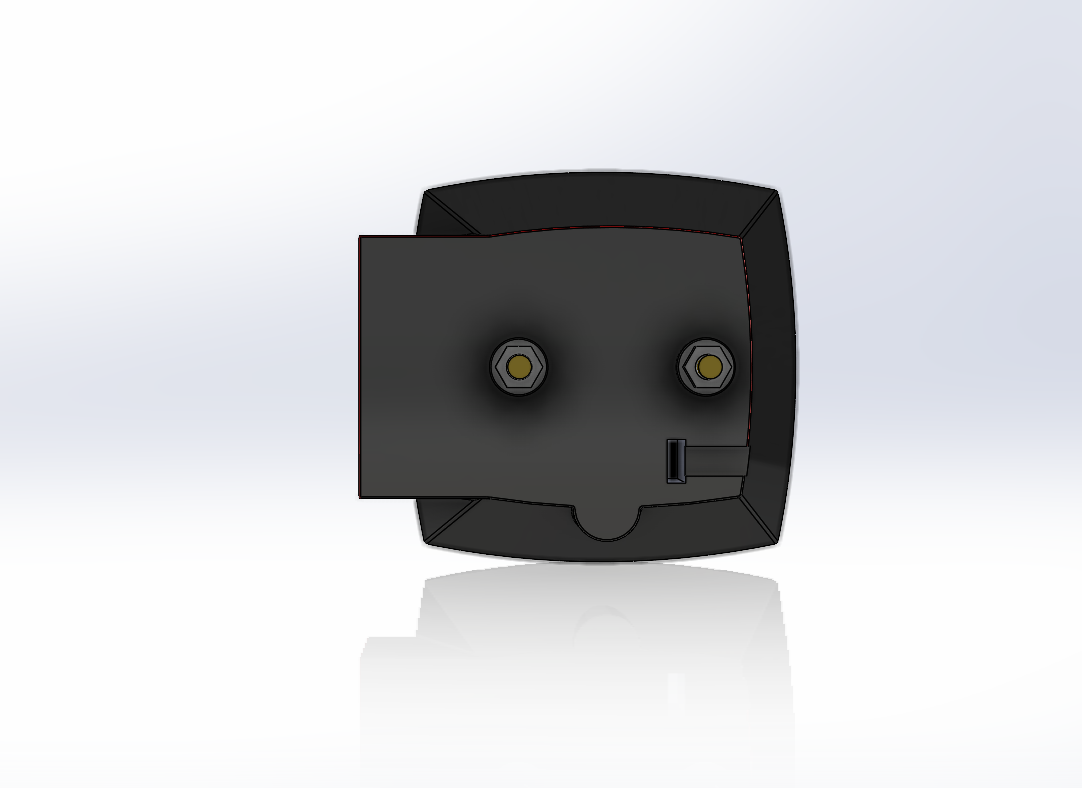

Stud mount on 2″ centers.
3-Wire design.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Waterproof trailer light:
Serves 7 functions: stop, turn, tail, rear reflex, side marker, side reflex, and license plate light.
Durable plastic housing.
Stud mount on 2″ centers.
3-Wire design.
Features:
Square trailer light serves 7 functions Stop light, turn signal light, tail light, rear reflex reflector, side marker light, side reflex reflector, license plate light Built-in reflex reflector removes the need for a separate reflector Sealed, waterproof construction is submersible Durable surface-mount technology (SMT) construction of LED circuit board Better withstands shock and vibration Allows for improved heat distribution LEDs make great replacements for incandescent lights Last 50 times longer More efficient – provide better light with less power output No bulbs to replace – no brittle filaments Molded plastic housing and durable acrylic lens Red lens over white LEDs Stud mount with included hardware 3-Wire pigtail White wire is the ground Brown wire is for the tail lights Yellow wire is for the stop and turn lights
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Be the first to review “Combination LED Trailer Tail Light – Submersible – 7 Function – 14 Diodes”
A single PDF document for your download and viewing convenience:
- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
