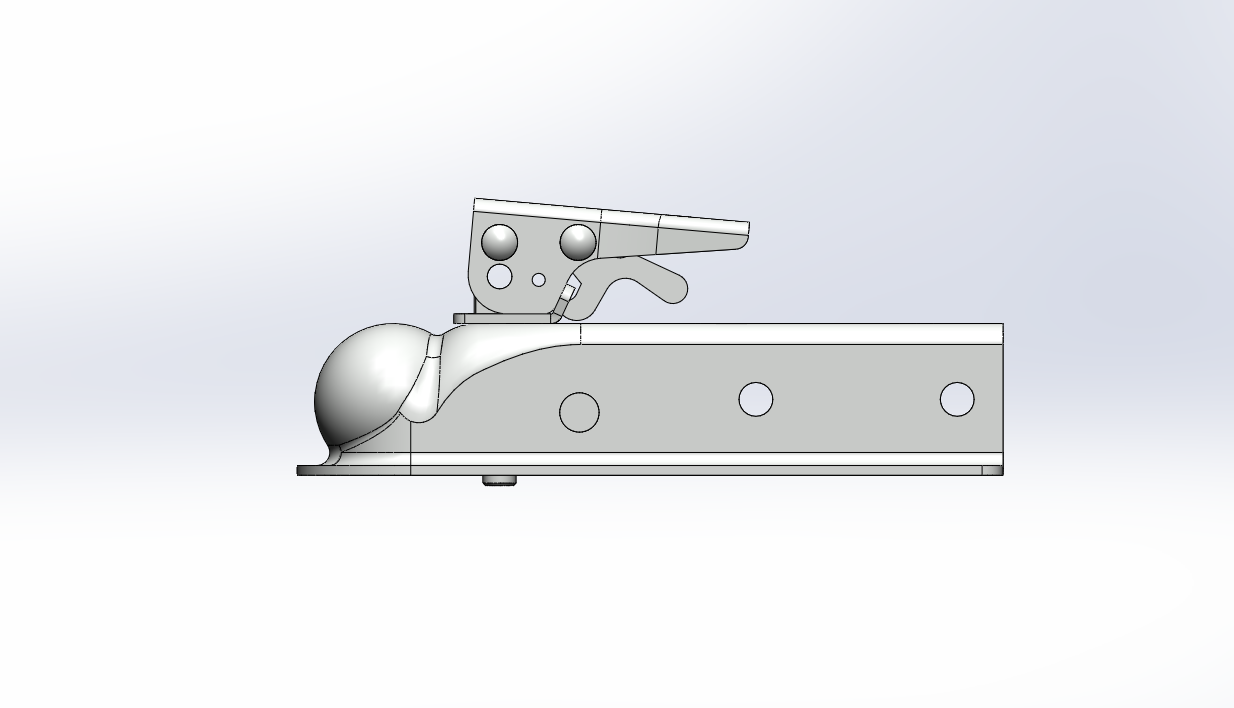

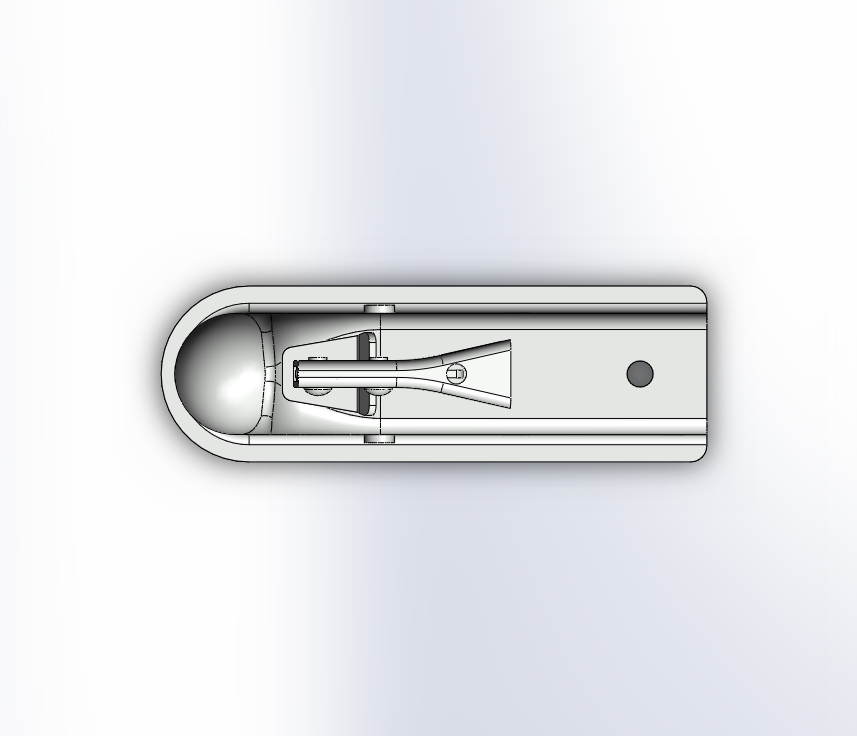

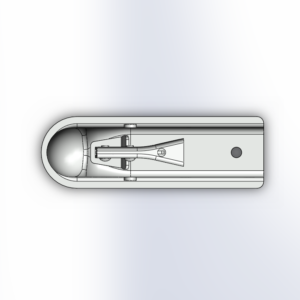

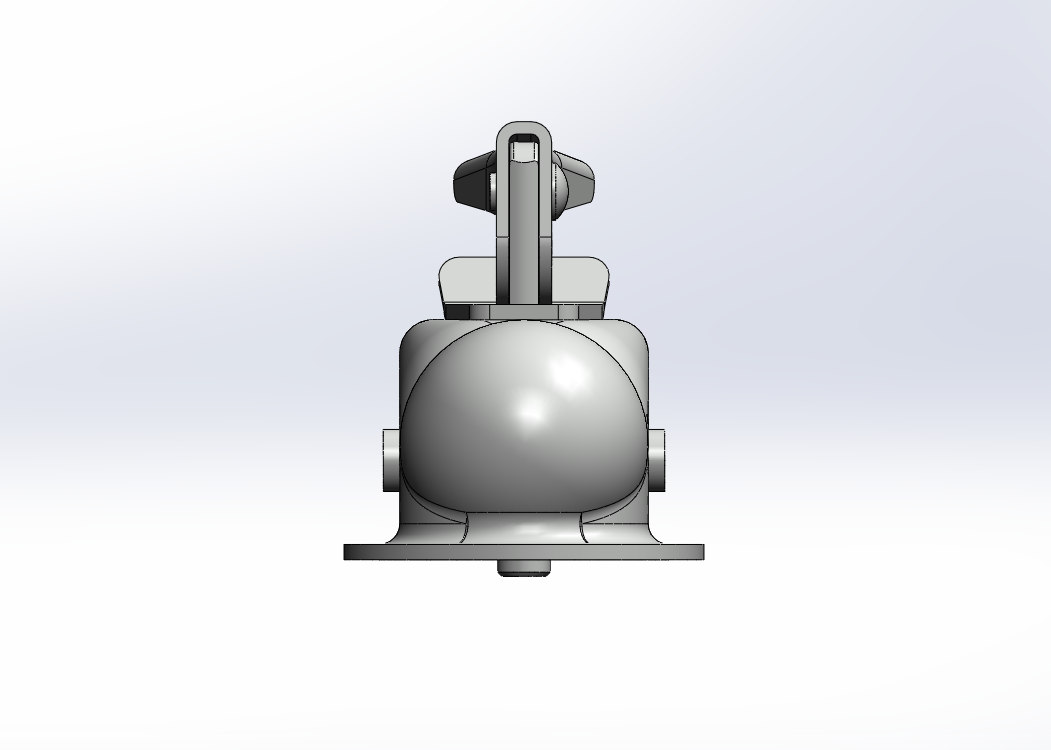

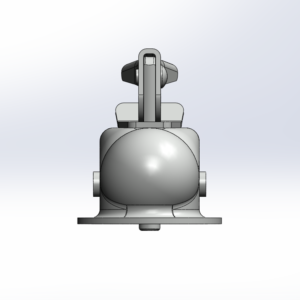

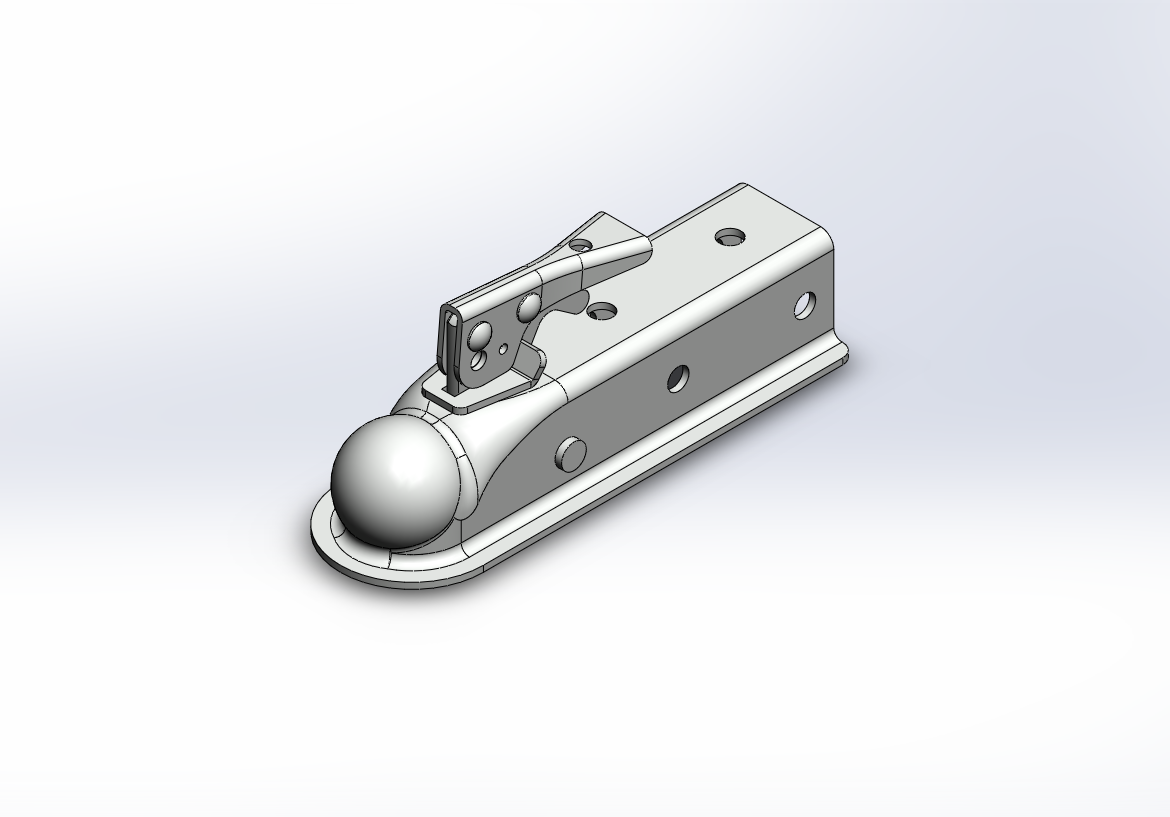

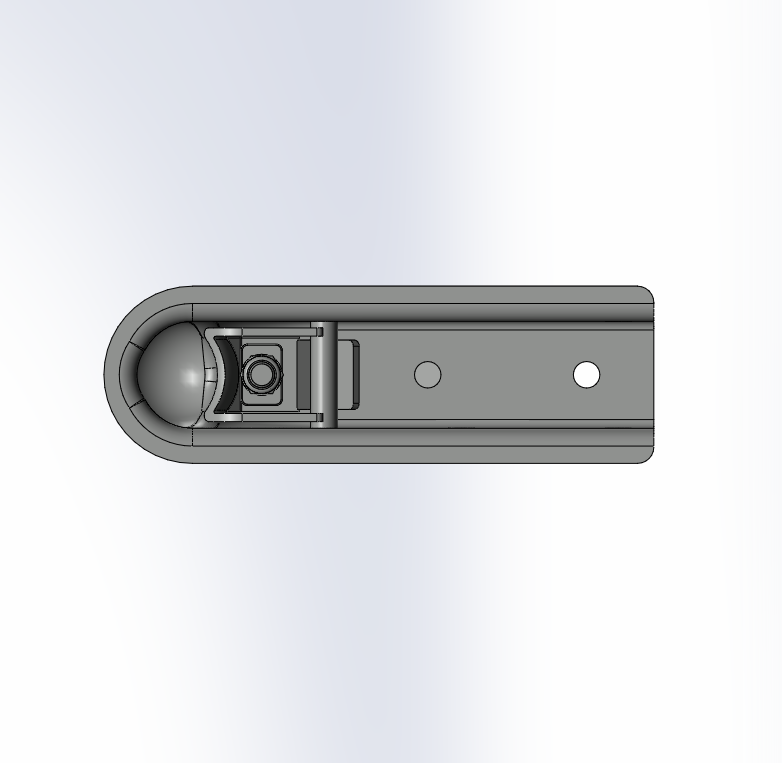

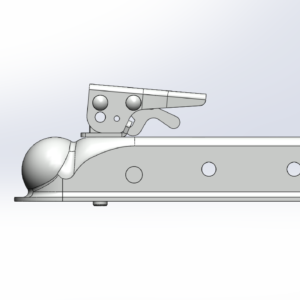

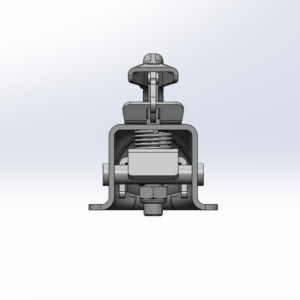

Channel Tongue Trailer CouplerTrigger Latch – Zinc – 2 BallBolt On – 3.500 lbs
$ 5,00
Straight-tongue coupler bolts onto your 2″ wide trailer tongue.
Pull trigger and pull up on the latch to open the ball socket.
The durable zinc offers superior rust resistance, making it perfect
for boat trailers and similar applications.

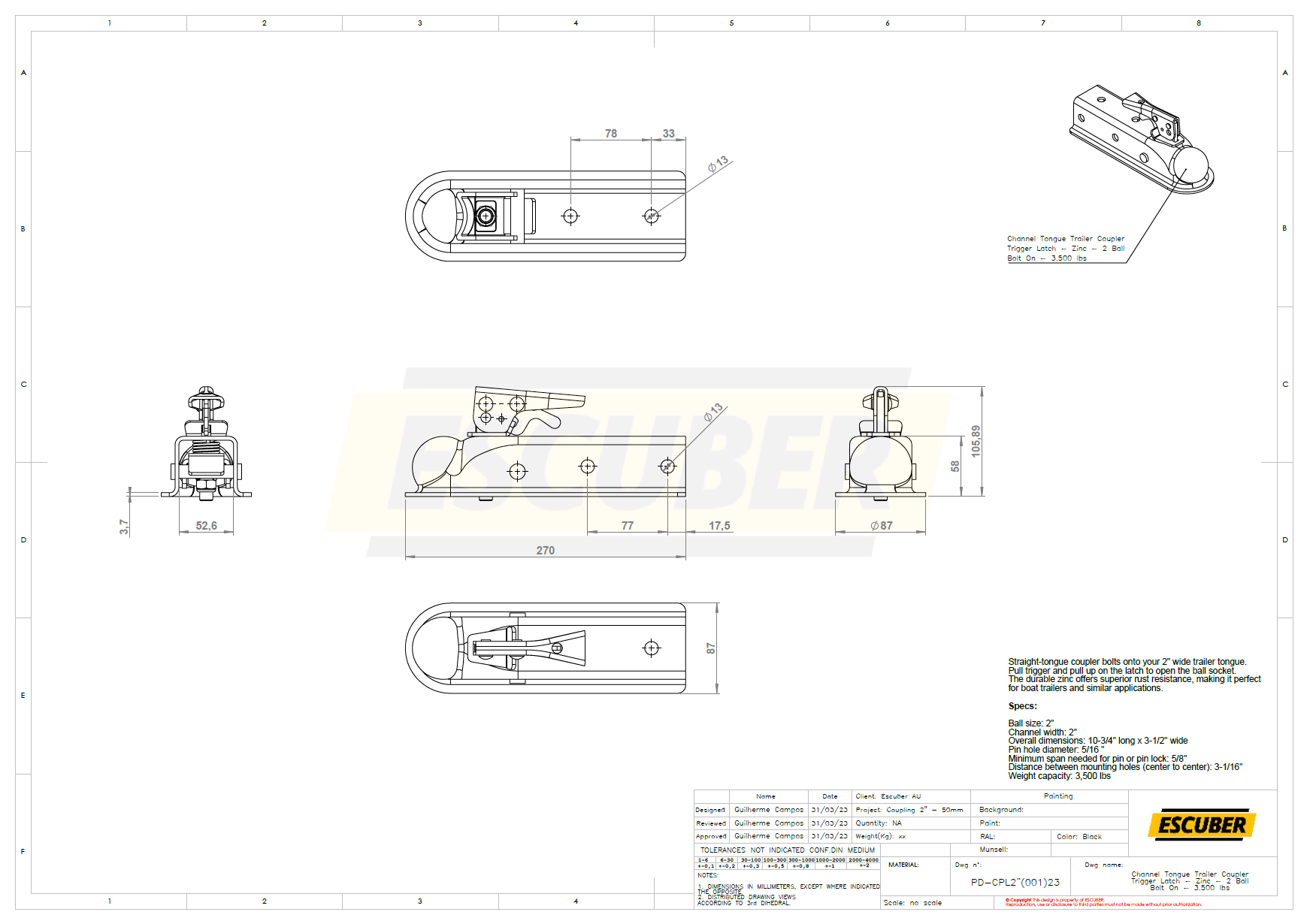

Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Straight-tongue coupler bolts onto your 2″ wide trailer tongue.
Pull trigger and pull up on the latch to open the ball socket.
The durable zinc offers superior rust resistance, making it perfect
for boat trailers and similar applications.
Files:
– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Specs:
Ball size: 2″
Channel width: 2″
Overall dimensions: 10-3/4″ long x 3-1/2″ wide
Pin hole diameter: 5/16 ”
Minimum span needed for pin or pin lock: 5/8″
Distance between mounting holes (center to center): 3-1/16″
Weight capacity: 3,500 lbs
Be the first to review “Channel Tongue Trailer CouplerTrigger Latch – Zinc – 2 BallBolt On – 3.500 lbs”
A single PDF document for your download and viewing convenience:
- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
