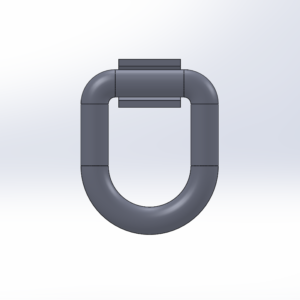

CargoSmart Forged Steel D-Ring Tie-Down Anchor – Weld On – 1″ x 5″ 15,000 lbs

CargoSmart Forged Steel D-Ring
Tie-Down Anchor – Weld On – 1″ x 5″
15,000 lbs.

Files:

– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print

This heavy-duty, forged steel D-ring lets you add an extra anchor point on your truck, utility trailer or enclosed cargo trailer. Welds to flat, steel surfaces. Perfect for securing trucks, tractors, and other heavy cargo.

Features:
Heavy-duty D-ring tie-down anchor provides a solid attachment point for ropes, straps or chains
Lets you anchor trucks, tractors, and other heavy cargo on your truck, utility trailer or enclosed cargo trailer
D-ring rotates 180 degrees so you can attach your rope, strap or chain from multiple angles
Forged steel construction is more resistant to wear and deforming than standard steel
Weld-on installation to most flat, steel surfaces

Specs:
Maximum load (break strength): 45,000 lbs
Safe working load limit (WLL): 15,000 lbs

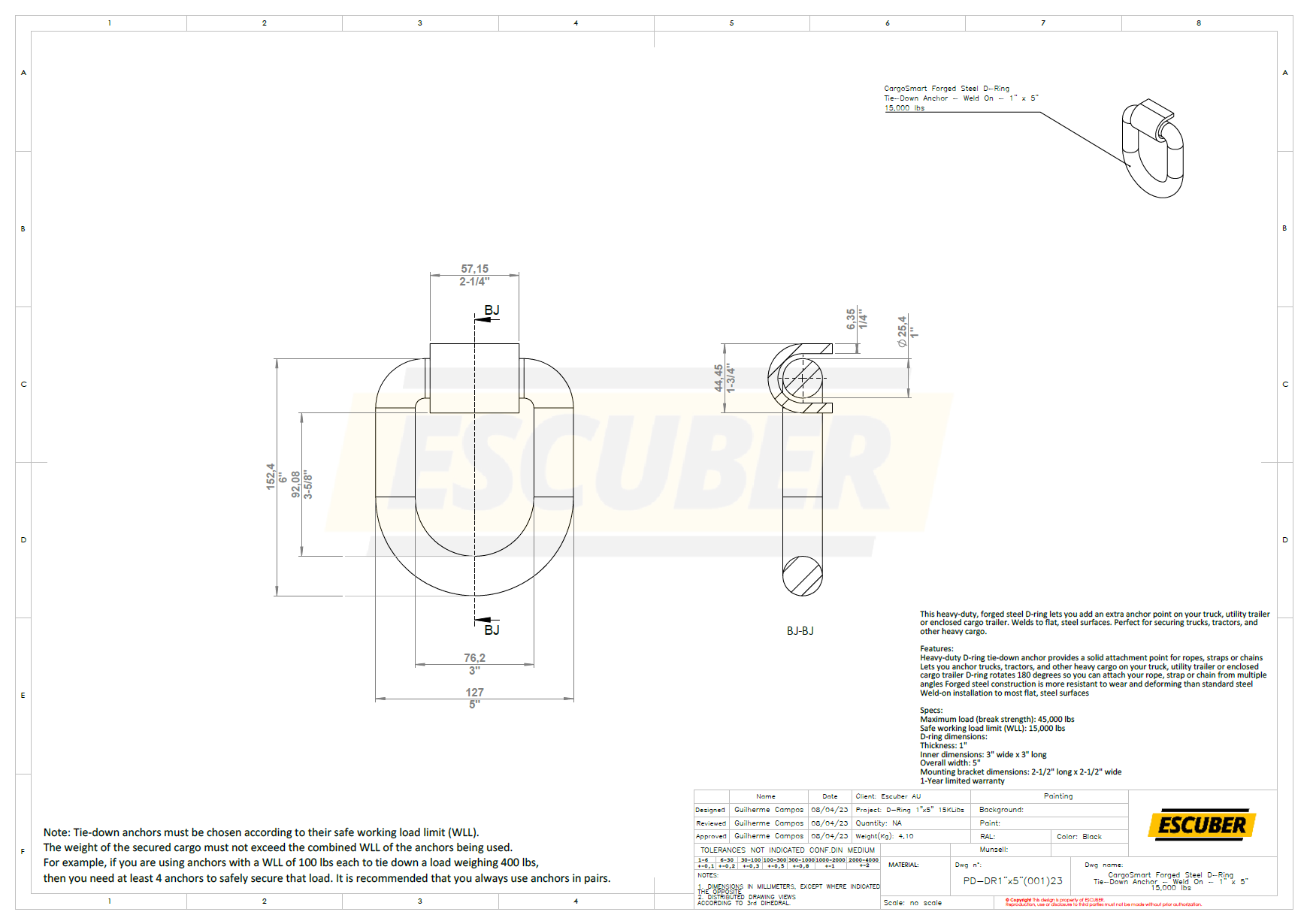

D-ring dimensions:
Thickness: 1″
Inner dimensions: 3″ wide x 3″ long
Overall width: 5″
Mounting bracket dimensions: 2-1/2″ long x 2-1/2″ wide

Note: Tie-down anchors must be chosen according to their safe working load limit (WLL). The weight of the secured cargo must not exceed the combined WLL of the anchors being used. For example, if you are using anchors with a WLL of 100 lbs each to tie down a load weighing 400 lbs, then you need at least 4 anchors to safely secure that load. It is recommended that you always use anchors in pairs.
