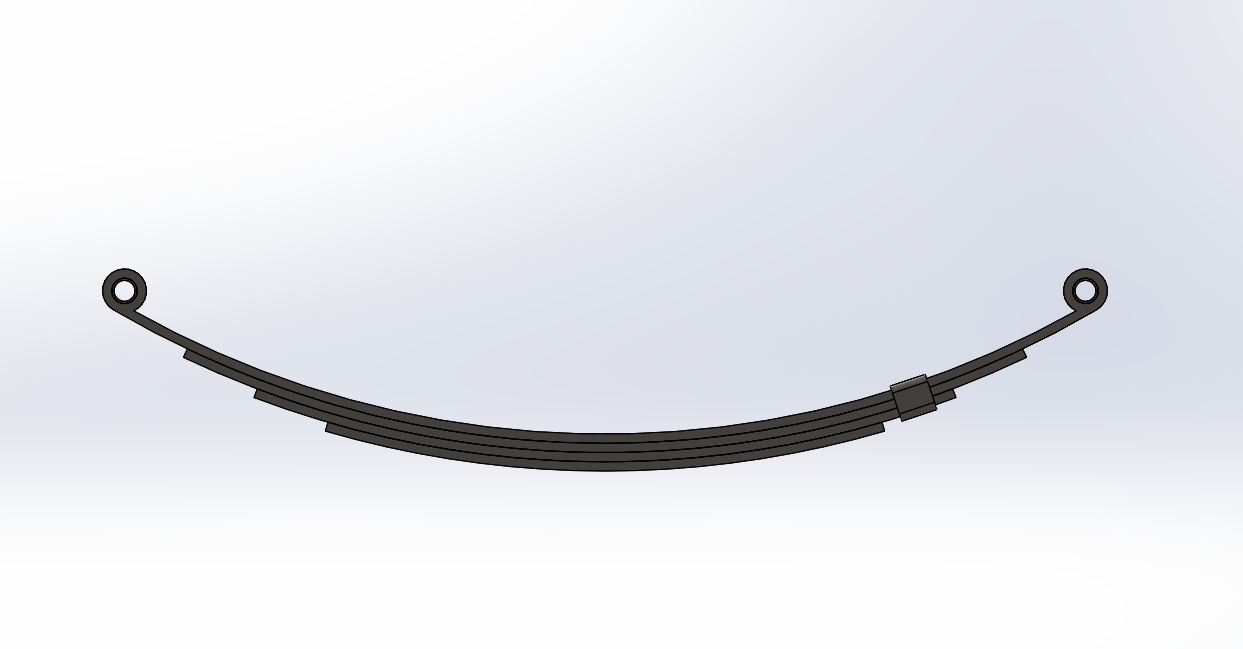

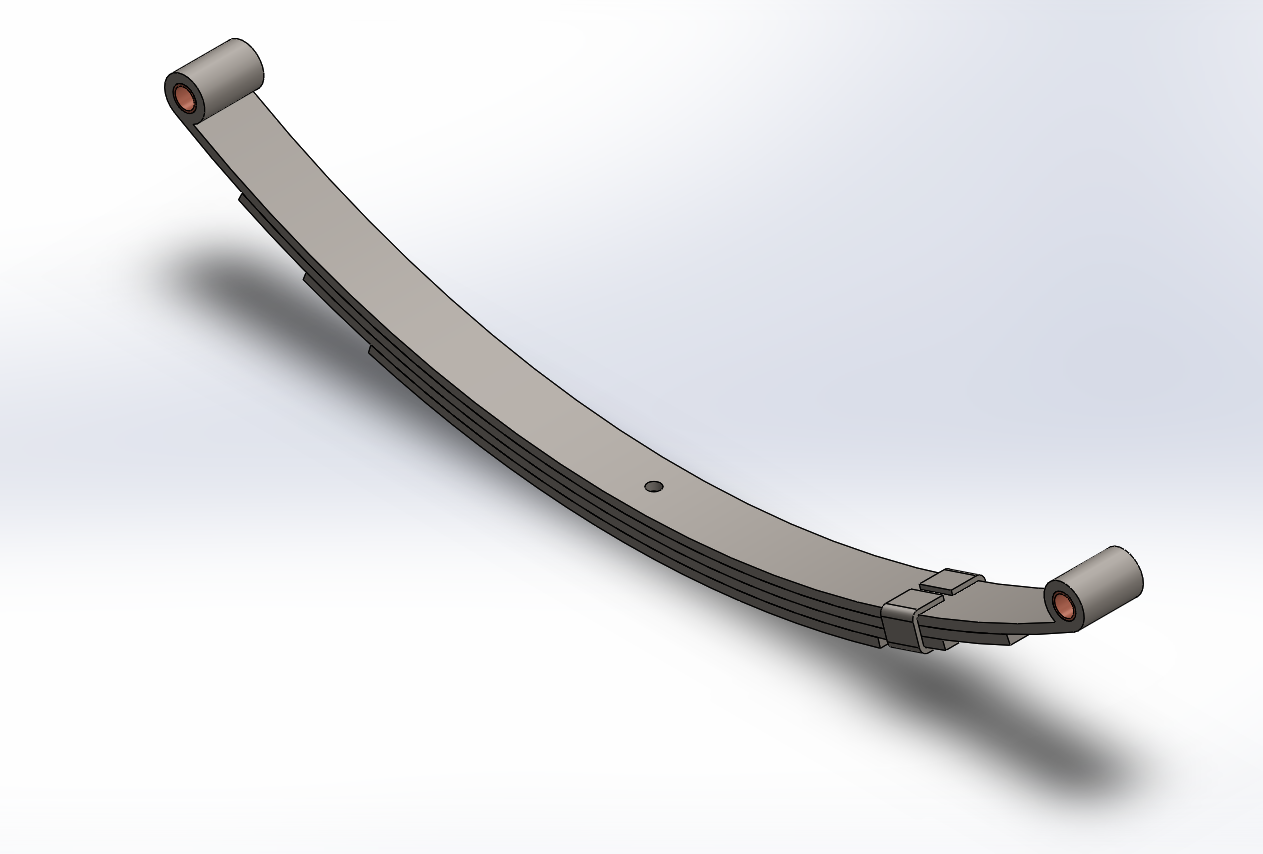

4-Leaf Double-Eye Spring for 2,000-lb Trailer Axles – 26″ Long

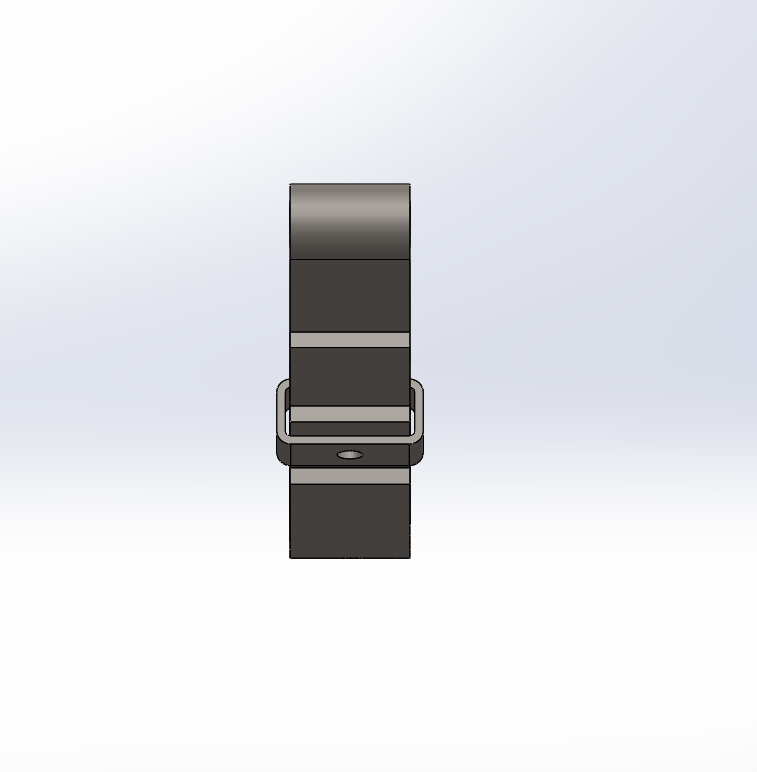

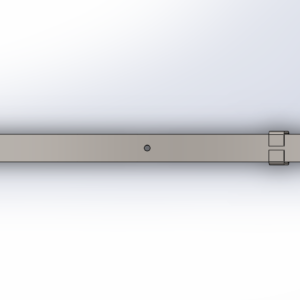

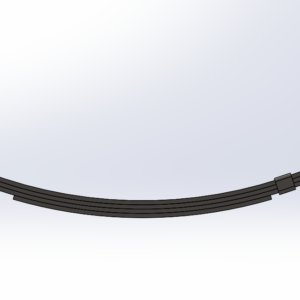

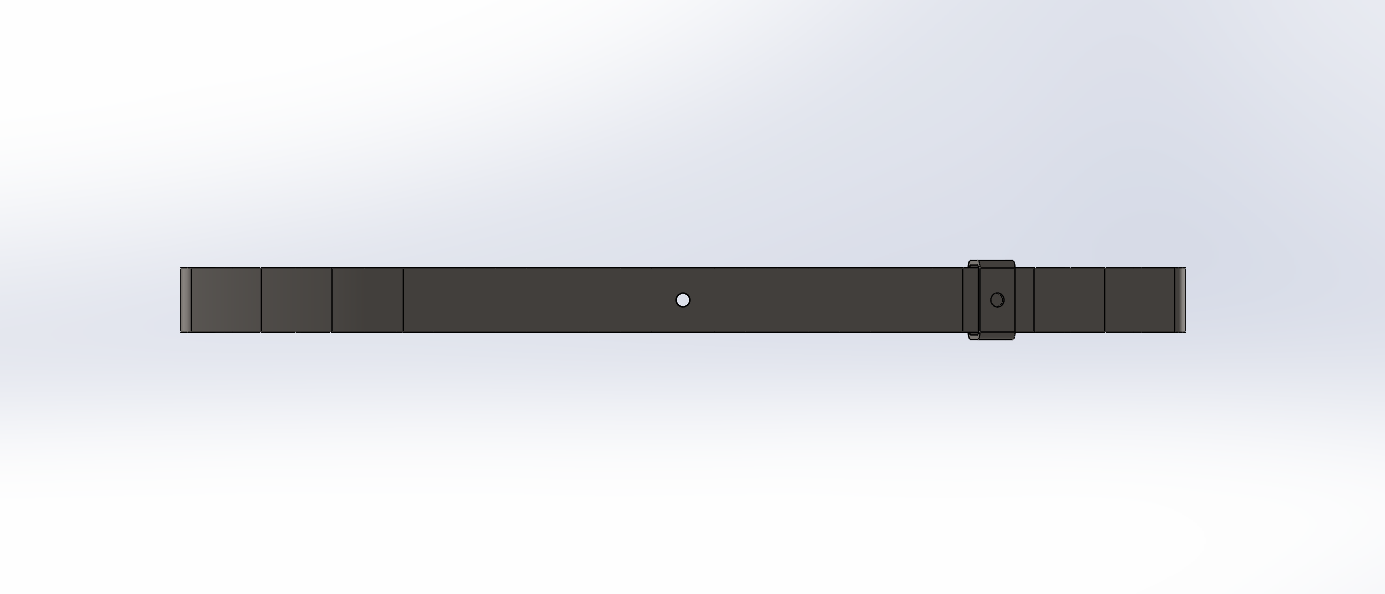

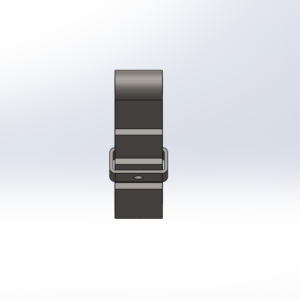

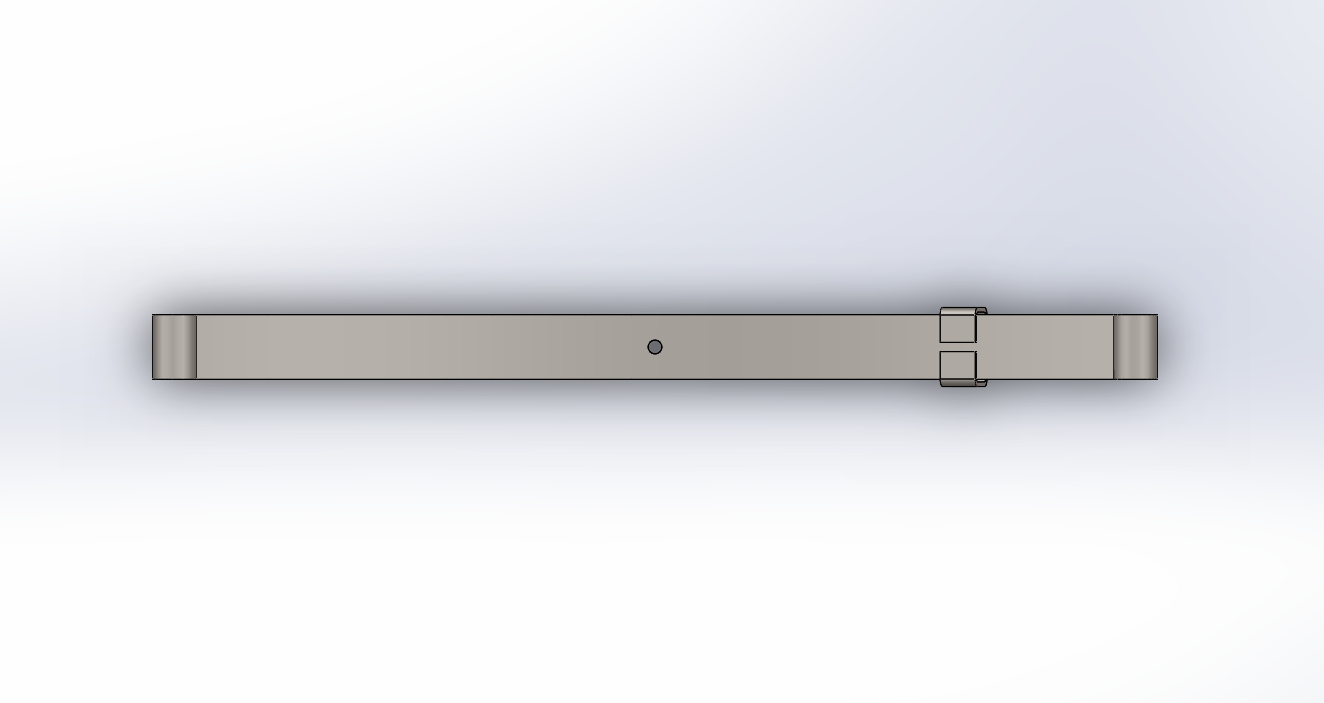

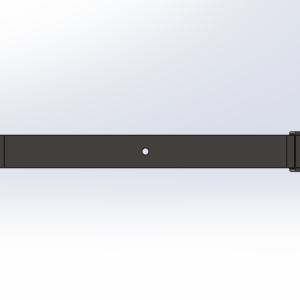

Double-eye leaf spring acts as part of a trailer’s suspension system by providing an attachment point for a 2,000-lb axle. Spring flexes to resist shock and also ensures a smooth ride. Includes bushings with 9/16″ inner diameter.

Files:

– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print

Features:

– Leaf spring acts as part of your trailer’s suspension system
– Provides attachment point for your trailer’s axle
– Multiple leaves allow flexibility to absorb road shock
– Allows for a smooth ride
– Reduces wear and tear on trailer
– Ensures level ride on bumpy and uneven surfaces
– Sturdy steel construction
– Nylon bushings included

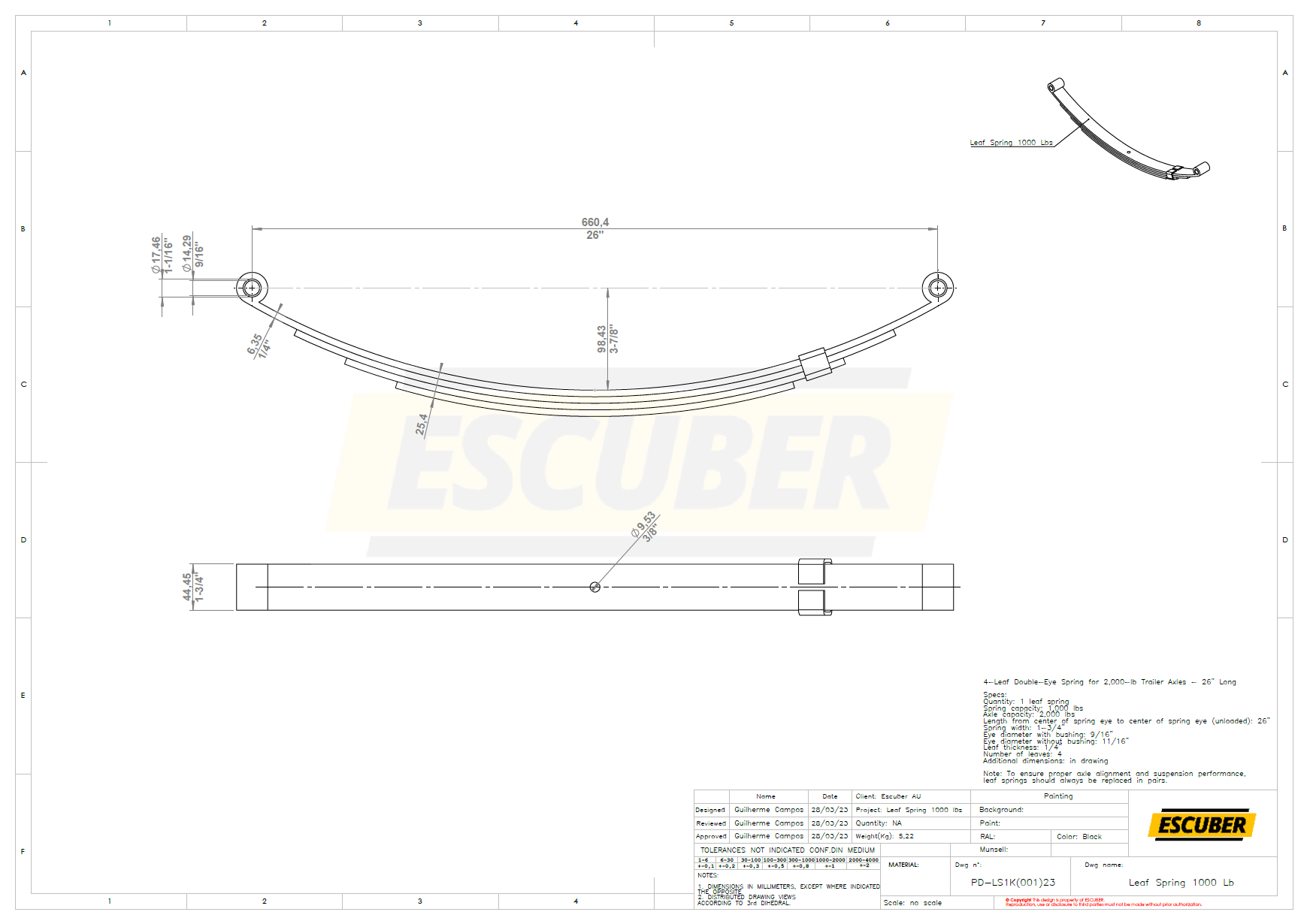

Specs:

– Quantity: 1 leaf spring
– Spring capacity: 1,000 lbs
– Axle capacity: 2,000 lbs
– Length from center of spring eye to center of spring eye (unloaded): 26″
– Spring width: 1-3/4″
– Eye diameter with bushing: 9/16″
– Eye diameter without bushing: 11/16″
– Leaf thickness: 1/4″
– Number of leaves: 4

Note: To ensure proper axle alignment and suspension performance, leaf springs should always be replaced in pairs.

Leaf springs are an integral part of your trailer suspension system. The leaf springs provide the attachment points for your trailer’s axle, suspending it from the frame of your trailer. Each spring flexes to absorb road shock as you travel, allowing the axle to move somewhat independently of the rest of your trailer. This helps to reduce wear and tear on the trailer and also ensures a smooth ride.

Double-eye leaf springs attach to hangers that are welded onto your trailer. One end of this spring will attach directly to the hanger with a suspension bolt. The other end will attach to shackle straps that are suspended from a hanger. These straps allow the spring to move and pivot so that it can better compensate for uneven pavement. If you have a tandem- or triple-axle trailer, the shackle straps will be attached to the equalizer that connects multiple springs.

To mount this spring, you will need hangers, shackle straps, and suspension bolts. If you are simply replacing a spring, you may still have hangers welded onto your trailer. You should, however, replace your shackle straps because they are usually the first component to wear out. You may choose to replace old suspension bolts as well. It is recommended that you replace the other leaf spring in your setup at the same time. Because springs can sag and elongate as they wear, this new spring may not exactly match the old one, and the alignment of your trailer could be affected.
