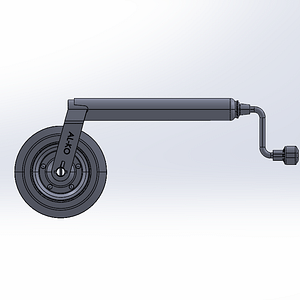

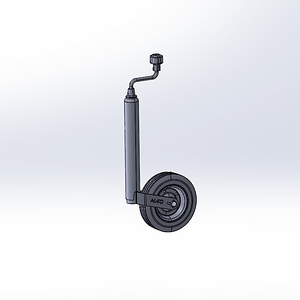

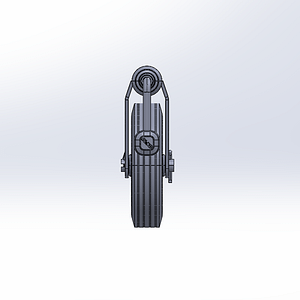

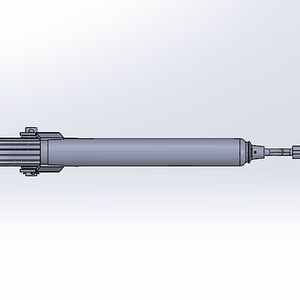

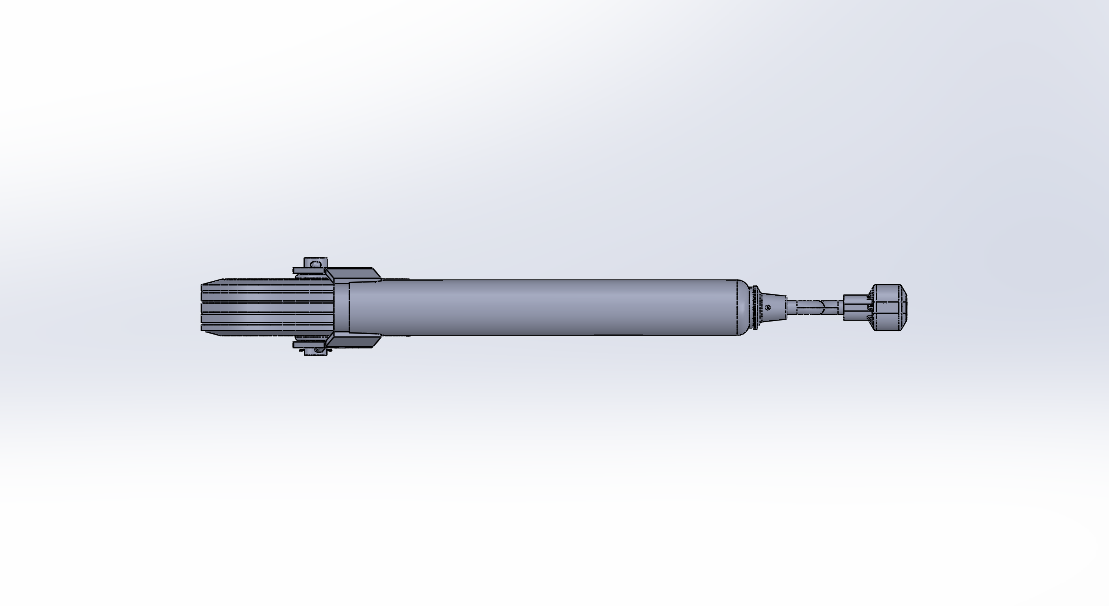

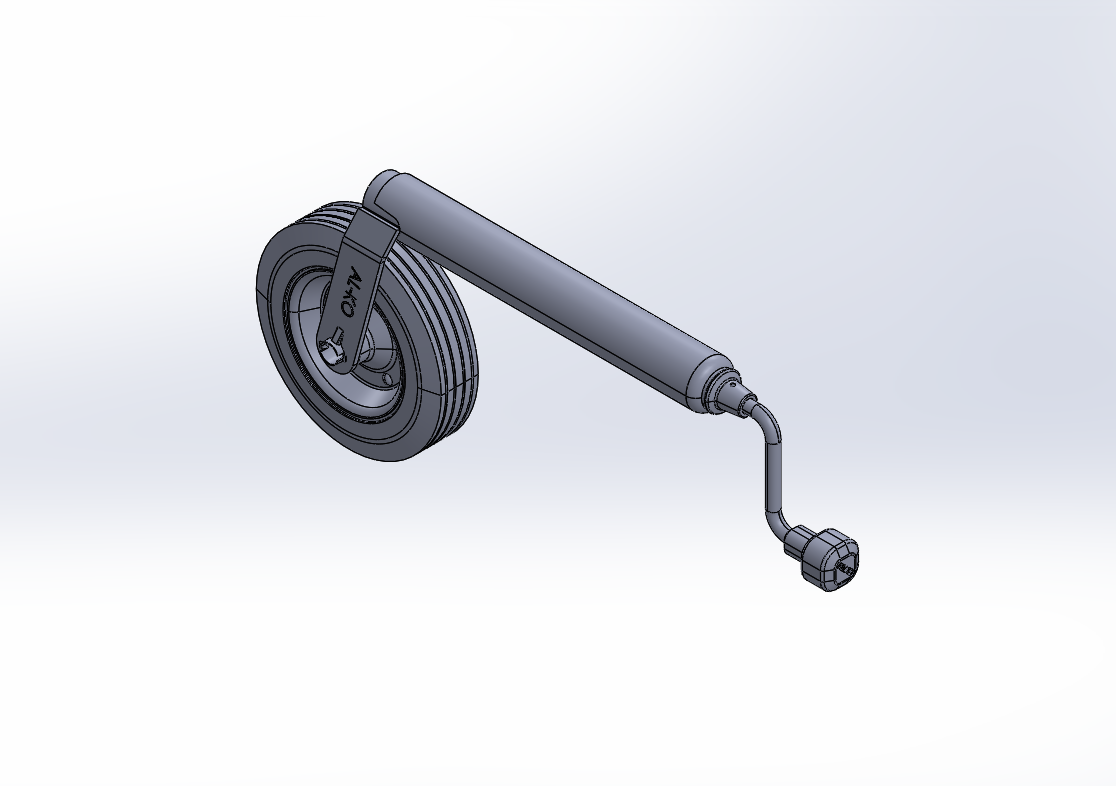

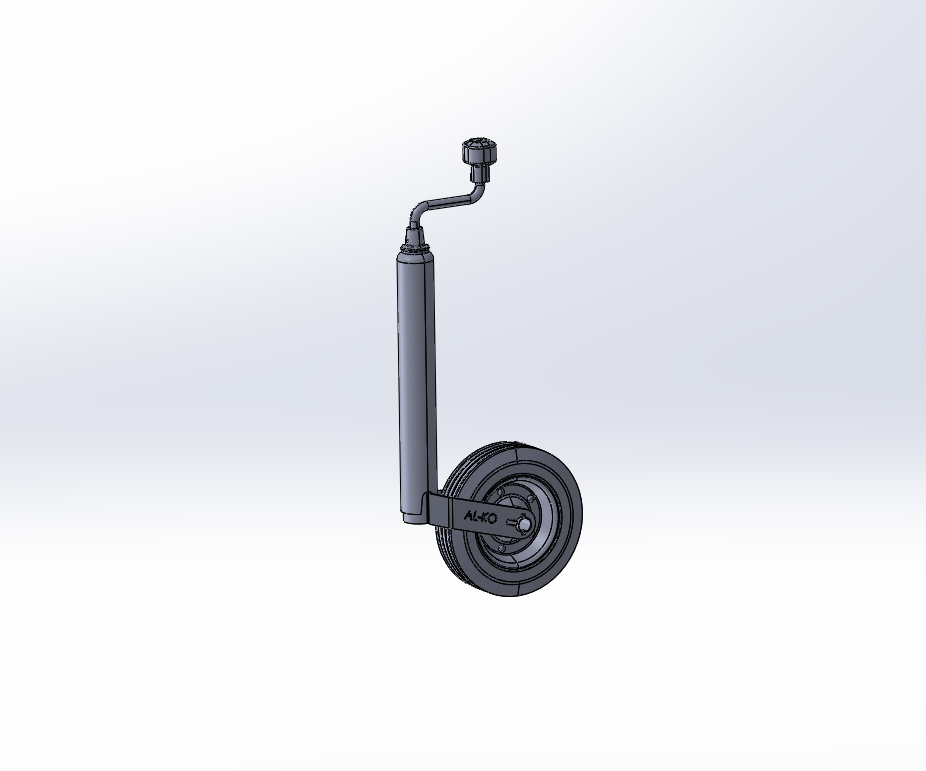

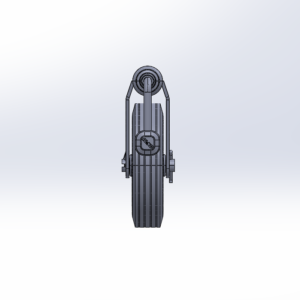

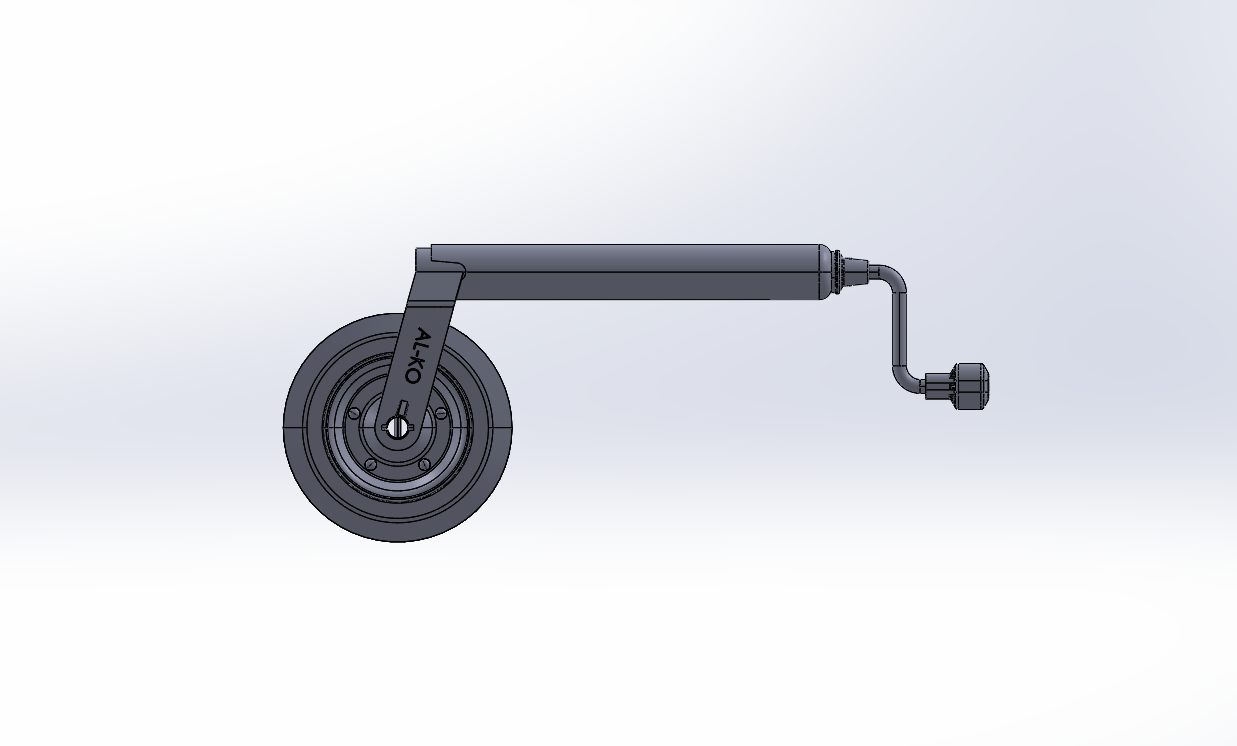

Jockey Wheel and Clamp
A galvanized jockey wheel complete with puncture proof tyre, or a bolt on spring clamp.
Features:
Puncture proof tyre
Galvanised Construction
Includes bolt on split clamp
Product Specification:
Weight: 5.6 kg
Wheel: 20cm (outer diameter) x 13cm (inner Diameter) x 4cm (Wide)
Main Shaft: 48mm (W) x 37cm (L)
Floor to Base of Handle: 49cm (Wound down) x 74cm (fully Extended)
Handle: 13.5cm (L) x 15cm (L Including Knob) x 4cm (H) x 9cm (H Including Knob)
All measurements are approximate and taken at the maximum points of the item, unless otherwise stated.
Files:

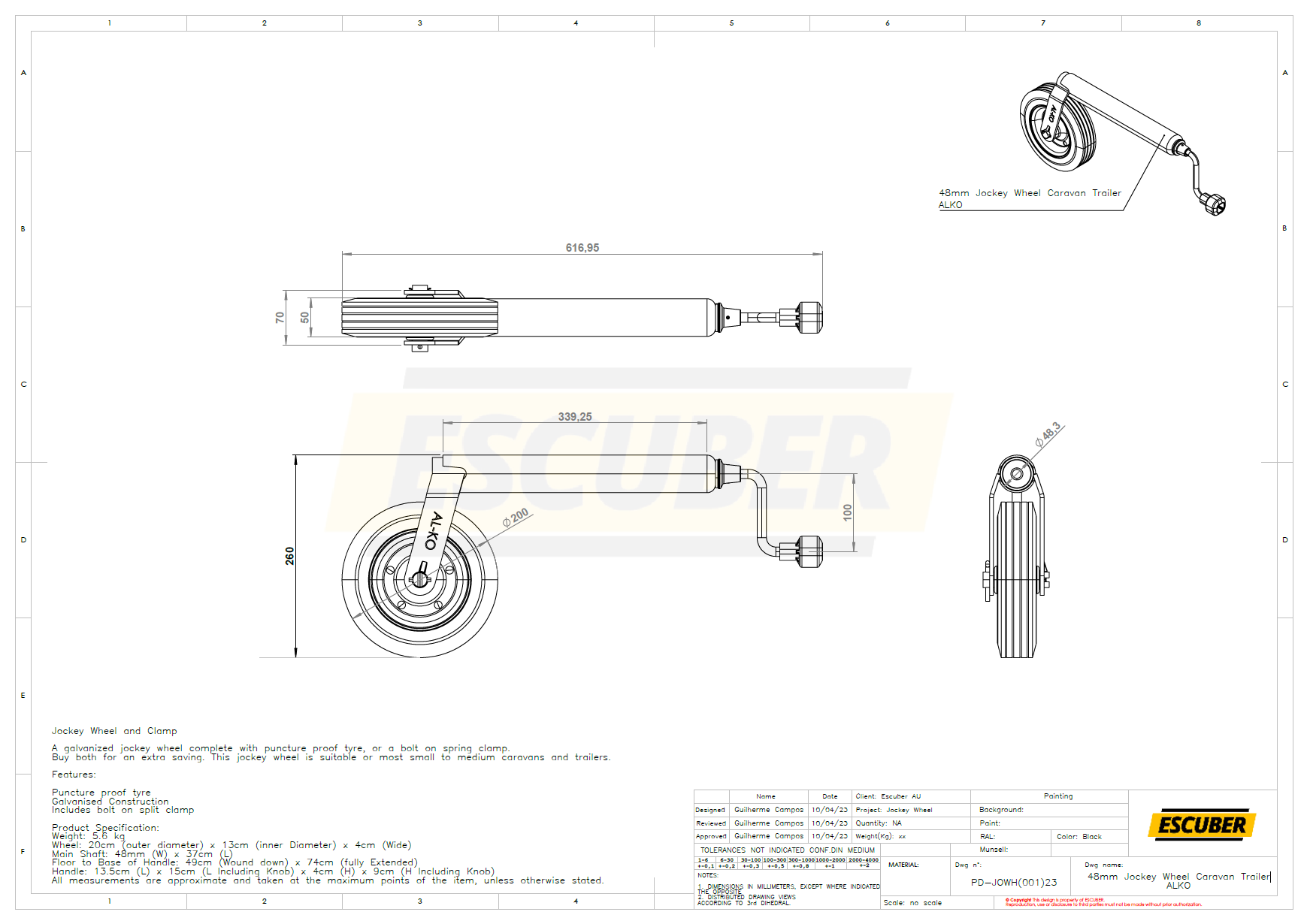

– PDF
– Step SolidWorks
– e-Drawing
– STL 3D Print
Be the first to review “48mm Jockey Wheel Caravan Trailer – ALKO”
A single PDF document for your download and viewing convenience:
- 22 detailed part & assembly drawings (print to A4 or A3)
- All dimensions required including ISO weld symbols
- 23 pages of comprehensive work & assembly instructions
- Additional component and instructional drawings
- Electrical wiring diagram including round & flat plug wiring detail
- Complete parts and material cut lists
- Detailed (enlarged) views of tricky or important bits
- Welding details – where & how much of it
- A design that conforms to legal requirements
- Purchased item specifications
- Safety guidelines during construction
- Tools required
- Pictures & handy hints
- DXF files for parts that can be laser cut (optional free download)
Instant Downloads
Get your plans immediately after completing secure checkout through PayPal so you can be up and running straight away.
Download file is in PDF format for easy viewing and printing from any device. A number of DXF and EXCEL files are also provided.
